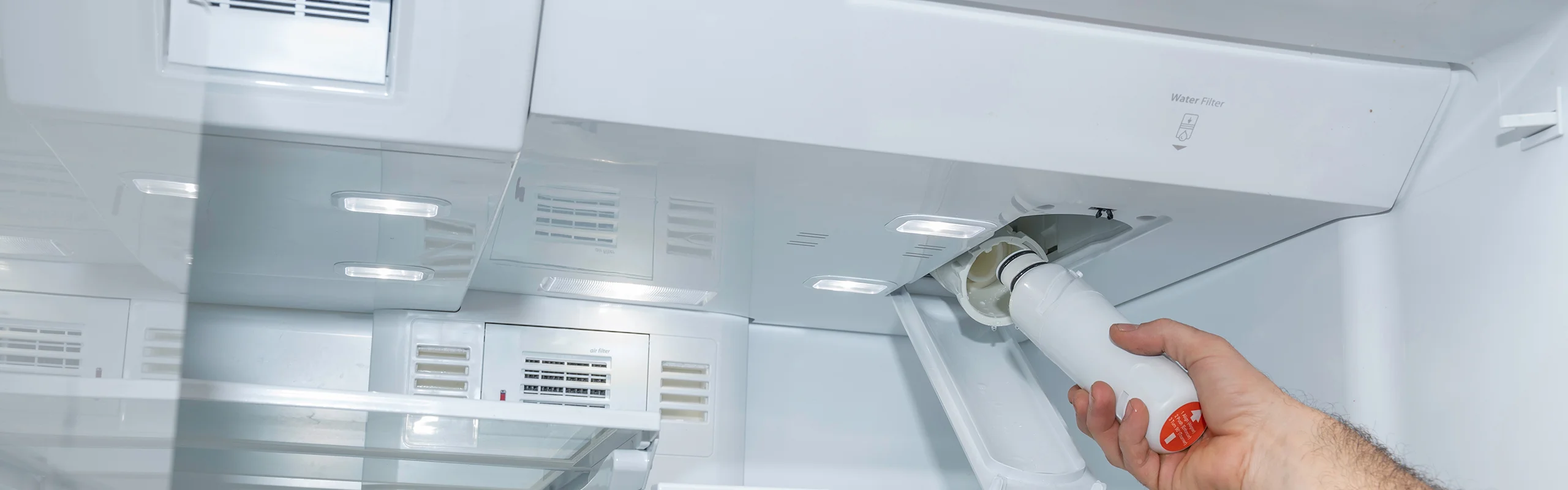

Refrigerator Water Filter Replacement Guide

This is a comprehensive guide that explains exactly how to find and replace the water filter in your refrigerator or freezer.
Getting Started:
What Brand Is Your Refrigerator?
It is necessary that you pay attention to the brand of your refrigerator, this will help you locate and purchase the correct water filter required. Once you select the correct brand, follow the provided instructions to successfully remove and install your water filter!
Bosch

What Does Your Refrigerator's Model Begin With?

B22CS

Filter Required For Your Refrigerator Is Model BORPLFTR10.

BORPLFTR10

(The Filter Should Be Replaced Every 6 Months.)

When the filter needs to be replaced, the refrigerator will display the words "Filter Change."

To Remove The Old Filter:

  1. Locate the filter door on the top center of the interior of the refrigerator.
  2. Squeeze both ends of the filter door to release the latch; this should result in the door swinging down.
  3. Rotate the filter cartridge counter clockwise, and then pull the cartridge end that is closest to you out of the filter compartment to remove the filter.

To Install The New Filter:

  1. Once removed, insert the new filter into the filter compartment, and then turn the filter clockwise to lock it into place.
  2. Then close the filter door to complete the installation.

To Reset The Filter Display Message:

  1. Press and hold the "Option" button until the "Filter Change" option is selected with an arrow.
  2. Then, press either the "+" or "-" button to complete the selection.
  3. The filter display message should now be reset.
B22CT | B22FT

The Required Filter Model For Your Refrigerator Is BORPLFTR20.

(The Filter Should Be Replaced Every 6 Months.)

When the filter is near the end of its usable life, the refrigerator will display the word "Order." When the filter needs to be replaced, the display will show the word "Replace."

To Remove The Old Filter, Follow These Steps:

  1. Locate the filter on the top right side of the refrigerator.
  2. Once located, pull the tab towards you and then pull it down.
  3. Then, turn the old filter counter clockwise to remove it from the filter holder.

To Install The New Filter:

  1. To insert the new filter, simply remove the seal and insert the new filter cartridge into the filter holder.
  2. Once inserted, rotate the filter clockwise until it stops to complete the replacement process.
  3. Once completed, close the filter cover by lifting it back into place until you hear a click.
  4. This will complete the installation process.

To Reset The Filter Display Message:

  1. Press and hold the "Filter Reset" button for 3 seconds.
  2. The filter display message should now be reset.
B26FT

The Required Filter Model For Your Refrigerator Is BORPLFTR10.

BORPLFTR10

(The Filter Should Be Replaced Every 6 Months.)

To see the status of your current filter, check the refrigerator display icon that contains 3 bars. The 3 bars correspond with the 6-month lifespan of the filter, meaning that each bar represents 2 months. After the 6-month lifespan has been used up, the 3 bars will flash indicating that it is time to replace the filter.

To Remove The Old Filter:

  1. Locate the filter on the top of the interior of the refrigerator.
  2. Once located, pull the door forward and then downward to open the door and expose the filter.
  3. Then, rotate the old filter counter clockwise and then pull the filter to remove it from the filter holder.

To Install The New Filter:

  1. To insert the new filter, simply remove the seal and insert the new filter cartridge into the filter holder.
  2. Once inserted, rotate the filter clockwise until it stops to complete the replacement process.
  3. Once completed, close the filter cover.
  4. It is suggested to dispense at least a gallon of water from the system in order to remove any air that has been trapped within.

To Reset The Filter Display Message:

  1. Press and hold the "Light / Filter" button for 3 seconds, until the display stops flashing.
  2. The filter display message should now be reset.
B30BB | B36IT

The Required Filter Model For Your Refrigerator Is BORPLFTR10.

BORPLFTR10

(The Filter Should Be Replaced Every 6 Months.)

When the filter is near the end of its usable life, the refrigerator will display the word "Filter" on the bottom left corner of the display. When the filter needs to be replaced, the display will read "FILTERCHG."

To Remove The Old Filter:

  1. Locate the filter on the bottom left side of the base of the refrigerator.
  2. Then, rotate the filter counter clockwise until it easily slides straight out.
  3. Once out, remove the filter cap and place it onto the new filter cartridge.

To Install The New Filter:

  1. To insert the new filter, simply push the filter into the base of the unit and rotate it clockwise.
  2. The filter should now be fully replaced.

To Reset The Filter Display Message:

  1. Press and hold the "Ice" and "Super Cool" buttons for 3 seconds.
  2. The filter display message should now be reset.
Electrolux

Where Is Your Water Filter Located?

Bottom Near The Condiment Bin

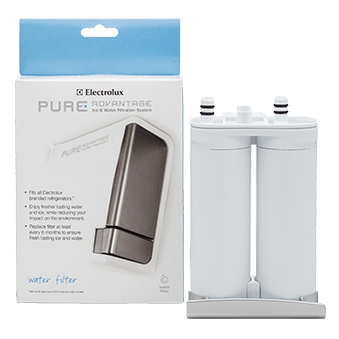

The Filter Required For Your Refrigerator Is Model EWF01.

EWF01

(The Filter Should Be Replaced Every 6 Months.)

After the refrigerator has dispensed the standard amount of water through the system, the "Water Filter Status" light will appear on the touch panel. This lets you know that the filter needs to be changed. (For PureAdvantage Filters™, the standard amount of water that can be filtered is approximately 400 gallons.)

*If the refrigerator hasn't been used for a period of time, such as during a move, it is recommended to change the filter prior to reinstallation.

**It is not necessary to turn the water off when replacing the filter, though some water may release. (It is a good idea to have a towel on hand just in case)

To Remove The Old Filter:

  1. Start by turning off the ice maker on the control panel.
  2. Locate the filter near the bottom of the condiment bin.
  3. Now, push the filter release button above the filter cartridge to disconnect it.
  4. Then slide it straight out of the housing.

To Install The New Filter:

  1. Remove both of the caps that are covering the inlet and exit of the filter.
  2. Then, slide the new filter cartridge gently into the housing until it stops against the snap-in connector at the back of the housing.
  3. Push firmly until the cartridge snaps into place (you should hear 2 clicks).
  4. If put in correctly, the filter should be flush with the filter release button.
  5. Once the filter is flush, turn on the ice maker on the control panel.
  6. Now, Press a drinking glass against the water dispenser while checking for any leaks coming out of the filter housing. (Any spurts or sputters that occur are due to the system purging air out of the dispenser. It may take about 1.5 minutes to start dispensing water.
  7. It is suggested to now Prime the Water Supply System by dispensing water from the system for about 3 minutes, in order to flush the system and plumbing connections of any impurities.

To Reset The Filter Display Message:

  1. Press and hold the "Filter Status" button on the control panel for 3 seconds.
  2. When the display changes from "Replace" to "Good" the filter display message should now be reset.
Top Rear Right Side

The Filter Required For Your Refrigerator Is Model EWF01.

EWF01

(The Filter Should Be Replaced Every 6 Months.)

After the refrigerator has dispensed the standard amount of water through the system, the "Water Filter Status" light will appear on the touch panel. This lets you know that the filter needs to be changed. (For PureAdvantage Filters™, the standard amount of water that can be filtered is approximately 400 gallons.)

*If the refrigerator hasn't been used for a period of time, such as during a move, it is recommended to change the filter prior to reinstallation.

**It is not necessary to turn the water off when replacing the filter, though some water may release.

To Remove The Old Filter:

  1. Start by turning off the ice maker power switch.
  2. Locate the filter near the top right side of the refrigerator.
  3. Now, push the filter release button below the filter cartridge to disconnect it.
  4. Then slide it straight out of the housing.

To Install The New Filter:

  1. Remove both of the caps that are covering the inlet and exit of the filter.
  2. Then, slide the new filter cartridge gently into the housing until it stops against the snap-in connector at the back of the housing.
  3. Push firmly until the cartridge snaps into place (you should hear 2 clicks).
  4. If put in correctly, the filter should be flush with the filter release button.
  5. Now, press a drinking glass against the water dispenser while checking for any leaks coming out of the filter housing. (Any spurts or sputters that occur are due to the system purging air out of the dispenser. It may take about 1.5 minutes to start dispensing water.
  6. Continue to flush the system for about 3 minutes in order to flush the system and plumbing connections of any impurities.

To Reset The Filter Display Message:

  1. Press and hold the "Filter Status" button on the control panel for 3 seconds.
  2. When the display changes from "Replace" to "Good" the display message should be reset.
Fisher & Paykel

What Does Your Refrigerator's Model Begin With?

E522, RF135, RF170, RF201

The Required Filter Model For Your Refrigerator Is 836848. (The Filter Should Be Replaced Every 6 Months.)

When the filter is ready to be changed, the refrigerator will display the "Water Filter Replacement" icon:

*It is not necessary to shut-off the water supply prior to replacing the filter.

To Remove The Old Filter, Follow These Steps:

  1. The filter will be located externally on the water supply line.
  2. To disconnect the filter, grasp it firmly and twist counter clockwise until it easily pulls away from the filter head. (It is not unusual for a few drops of water to be present when the filter is removed)

To Install The New Filter, Follow These Steps:

  1. First, remove the protective cap that is covering the new filters spigot (head).
  2. Then, push the filter cartridge up towards the filter head while rotating it in a clockwise direction.
  3. The filter should now be fully replaced.

To Reset The Filter Display Message, Follow These Steps:

*Do not reset the filter display prior to replacing the filter, or the filter monitoring system will be inaccurate

  1. Press and hold the and + for 4 seconds.
  2. Once reset the icon will turn off
Frigidaire

Where Is Your Filter Located?

For Push To Lock And Release (see below) Filters On The Top Right Rear Side


(Push to Lock and Release)

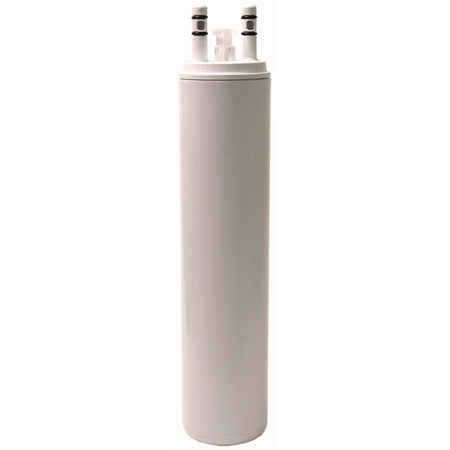

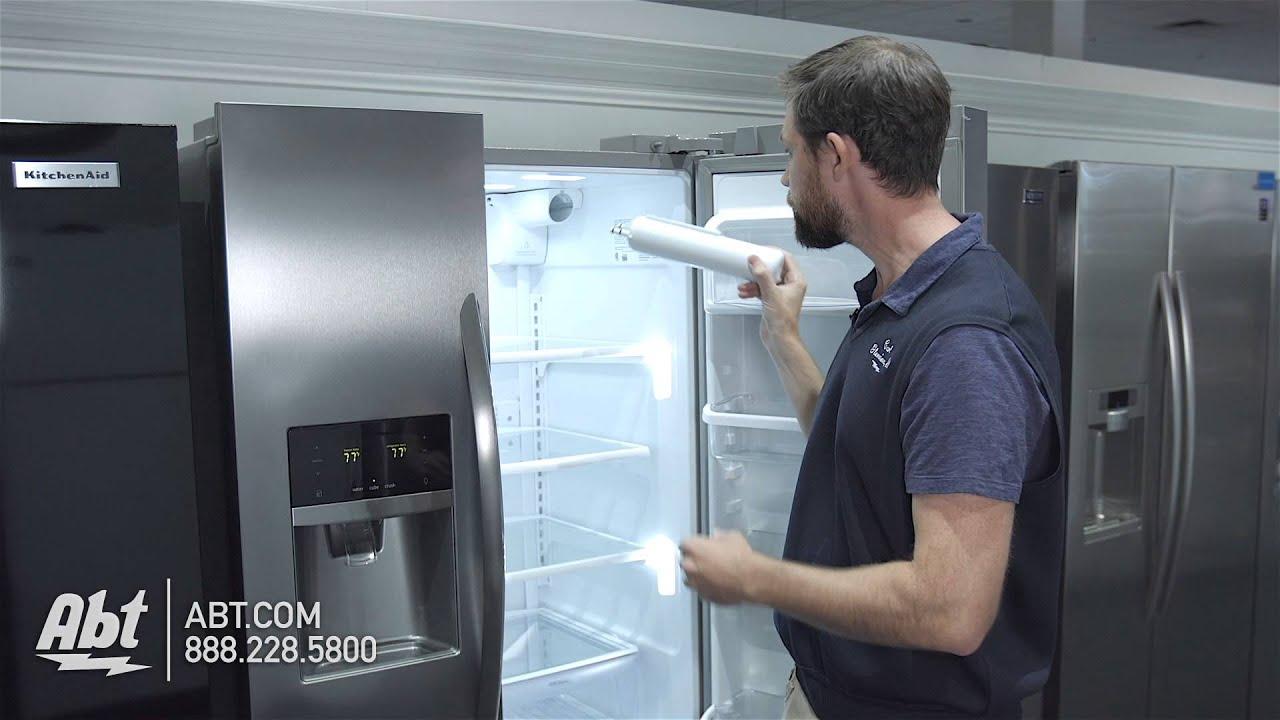

The Required Filter Model For Your Refrigerator Is ULTRAWF.

ULTRAWF

(The Filter Should Be Replaced Every 6 Months.)

When the filter is ready to be changed, the refrigerator will display the "Water Filter Replacement" icon.

*It is not necessary to shut-off the water supply prior to replacing the filter.

To Remove The Old Filter:

  1. Before replacing the filter, it is necessary to turn off the ice maker power switch.
  2. Once off, locate the filter on the top right rear side of refrigerator.
  3. Once located, push the old filter on the end/face to remove it.
  4. The filter should now slide straight out of the housing.

To Install The New Filter:

  1. First, remove the filter packaging.
  2. Then, push the filter cartridge slowly straight in to the filter housing using the alignment guide.
  3. Once inserted, push the filter firmly until the cartridge snaps into place. (If done correctly, you should hear a click as the cartridge engages the snap-in connector.)
  4. Now, press a drinking glass against the water dispenser while checking to see if any leaks are coming from the filter housing. (Any spurts or sputters that occur as the system purges air out of the dispenser are normal.
  5. After filling one glass of water, continue flushing the system for about 4 minutes to ensure all impurities are out of the system.
  6. Turn on the ice maker to finish the installation of the new filter.

To Reset The Filter Display Message:

  1. Press and hold the "Water Filter" button on the Ice & Water Dispenser for 3 seconds.
  2. When the display changes from Red to Green, the filter status has been reset.
GE

Pay Close Attention To Which Model Your Refrigerator Begins With.

BSS | CNS | GNS | GSE | GSS | GZS | PFK | PSB | PSE | PSS | PZS | ZISB | ZISP | ZISS

When the filter needs to be replaced, a "Replacement Indicator" light will illuminate on the temperature display.

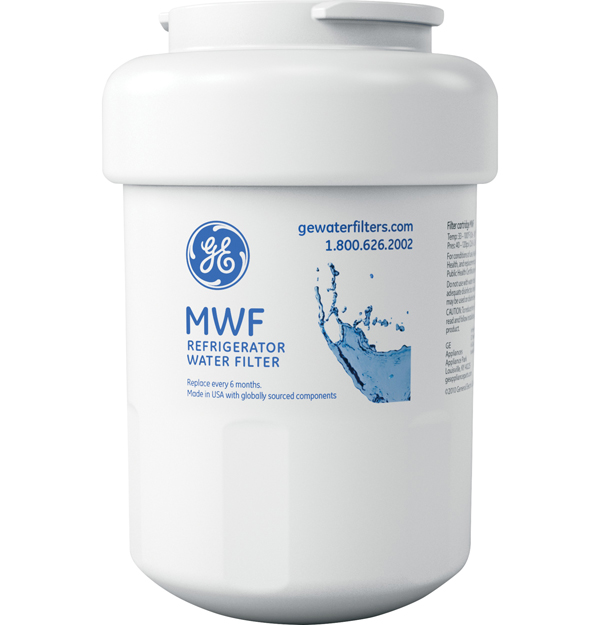

The Required Filter Model For Your Refrigerator Is MWF.

MWF

(The Filter Should Be Replaced Every 6 Months.)

To Remove The Old Filter:

  1. Slowly turn the old cartridge to the left. If fully turned, the cartridge should fall out naturally. (Do not pull on the cartridge, if it does not come out easily make sure that the filter is fully twisted to the left.)

To Install The New Filter:

  1. Remove the protective foil from the end of the cartridge.
  2. Fill the replacement cartridge with water from a tap to allow for better flow from the dispenser immediately after installation.
  3. Line up the arrows on the cartridge and the cartridge holder.
  4. Slowly rotate the cartridge clockwise until it stops. (You should feel it "click" as it locks into place.)
  5. Run water from the dispenser for about 3 minutes (approximately 1.5 gallons) to clear the system and prevent sputtering.

To Reset The Filter Display Message:

  1. Press and hold the "Reset Water Filter" button for 3 seconds.
  2. If done correctly, the filter display message should be reset.
CZS25TSE

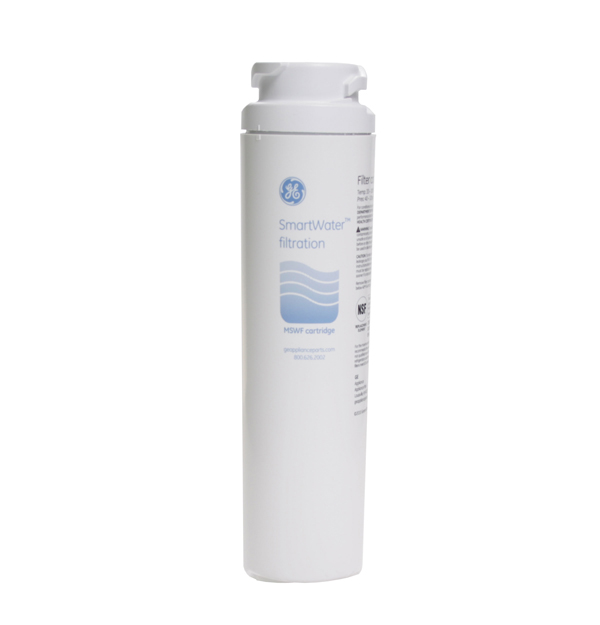

The Required Filter Model For Your Refrigerator Is MSWF.

MSWF

(The Filter Should Be Replaced Every 6 Months.)

For Models That Have A Replacement Indicator Light:

The replacement indicator light on the dispenser will turn orange when the water filter needs to be replaced soon.

When the light turns red or the flow of water to the dispenser or ice maker decreases, replace the water filter immediately.

For Models Without A Replacement Indicator Light:

The filter should be replaced every 6 months. If the flow of water to the dispenser or ice maker decreases replace the filter.

To Remove The Old Filter:

  1. Slowly turn the old cartridge to the left. If fully turned, the cartridge should fall out naturally. (Do not pull on the cartridge; if it does not come out easily make sure that the filter is fully twisted to the left.)
  2. It is suggested to apply the month and year sticker to the new cartridge to remind you to replace the filter in 6 months.
  3. *If you happen to be replacing a SmartWater cartridge with an adapter, it must be removed before installing the cartridge. To remove the adapter, simply turn it to the left for about a 1/4 of a turn.

To Install The New Filter:

  1. Remove the protective foil from the end of the cartridge.
  2. Fill the replacement cartridge with water from a tap to allow for better flow from the dispenser immediately after installation.
  3. Line up the arrows on the cartridge and the cartridge holder.
  4. Slowly rotate the cartridge clockwise (to the right) until it stops. (You should feel it "click" as it locks into place.)
  5. Run water from the dispenser for about 3 minutes (approximately 1.5 gallons) to clear the system and prevent sputtering.

To Reset The Filter Display Message:

  1. Press and hold the "Reset Water Filter" button for 3 seconds.
  2. If done correctly, the filter display message should be reset.
CFE | CWE | CYE | GFE | GYE | PFE | PWE | PYE | ZWE

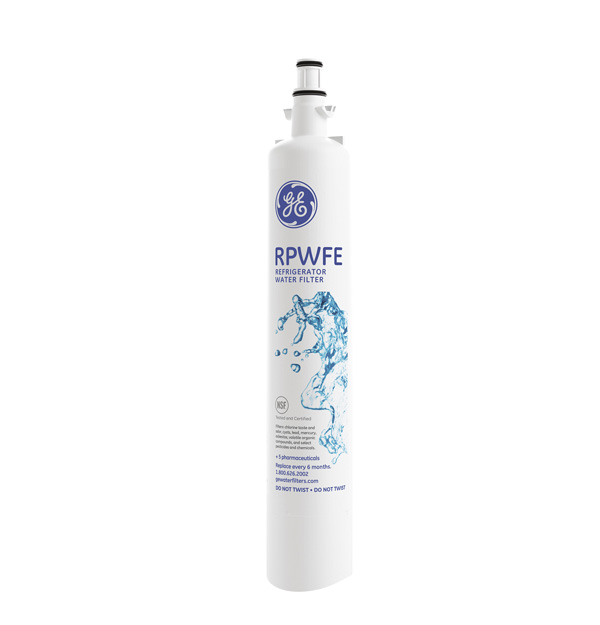

The Required Filter Model For Your Refrigerator Is RPWF(E).

RPWFE

(The Filter Should Be Replaced Every 6 Months.)

To See The Status Of Your Filter:

For Touch Screen Models

Your refrigerator will display a status message on the screen when the water filter needs replacing. (The display will automatically reset upon replacement.)

For Non-Touch Screen Models

Your Refrigerator will illuminate a "Filter Indicator" light on the screen when the filter needs to be replaced.

To Remove The Old Filter:

  1. To start, open the filter door.
  2. Once open, pull on the bottom of the cartridge to allow it to swing outward.
  3. When the filter cartridge can no longer swing, gently pull to unseat it from the cartridge holder.
  4. A small amount of water may drip out.
  5. * DO NOT TWIST THE FILTER CARTRIDGE!

To Install The New Filter:

  1. Align the top of the filter cartridge with the cartridge holder with the word front facing outward.
  2. Push the cartridge toward the rear of the unit until it is fully seated. (Do Not Twist The Cartridge!)
  3. While continuing to ensure that the cartridge is fully seated in the holder, gently swing the filter inward until it is in position. (If the filter does not swing gently, check to ensure the filter is properly aligned and fully seated within the cartridge holder.)
  4. You may now close the filter door.
  5. To complete the replacement, run about 2 gallons of water through the cold-water dispenser. (It will take approximately 5 minutes.)
  6. **DO NOT USE THE HANDS-FREE AUTO-FILL FEATURE!

  7. A newly installed filter cartridge will cause the water to spurt from the dispenser, due to air being removed from the system.

To Reset The Filter Message (Non-Touch Screen Models):

  1. Hold the "Reset Filter" button for 3 seconds to reset the filter display.
  2. If done correctly, the filter display message should be reset.
LG

Pay Attention To What Your Refrigerator's Model Starts With, Unless You Have A SlimSpace Plus Ice System:

LFX25973S | LFX25974S | LSC21943ST | LSC23924S | LSC27910S | LSC27914S | LSC27921S | LSC27925S

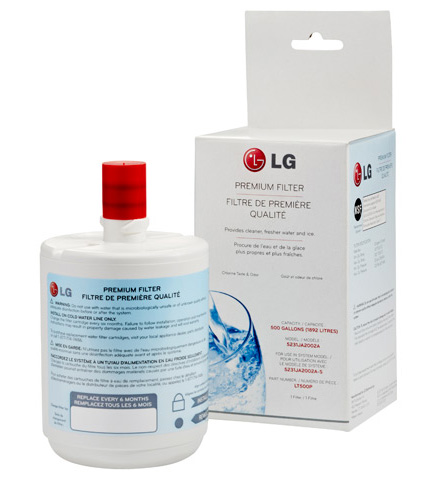

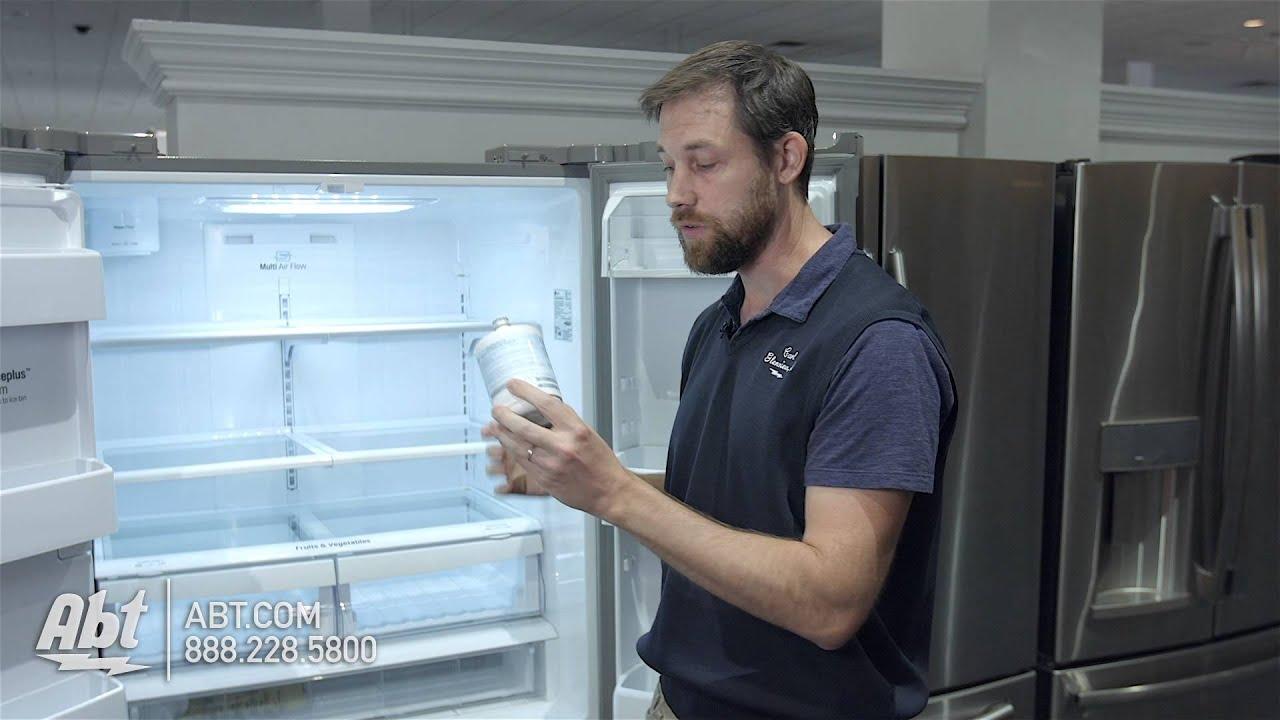

The Required Filter Model For Your Refrigerator Is LT500P.

LT500P

(The Filter Should Be Replaced Every 6 Months.)

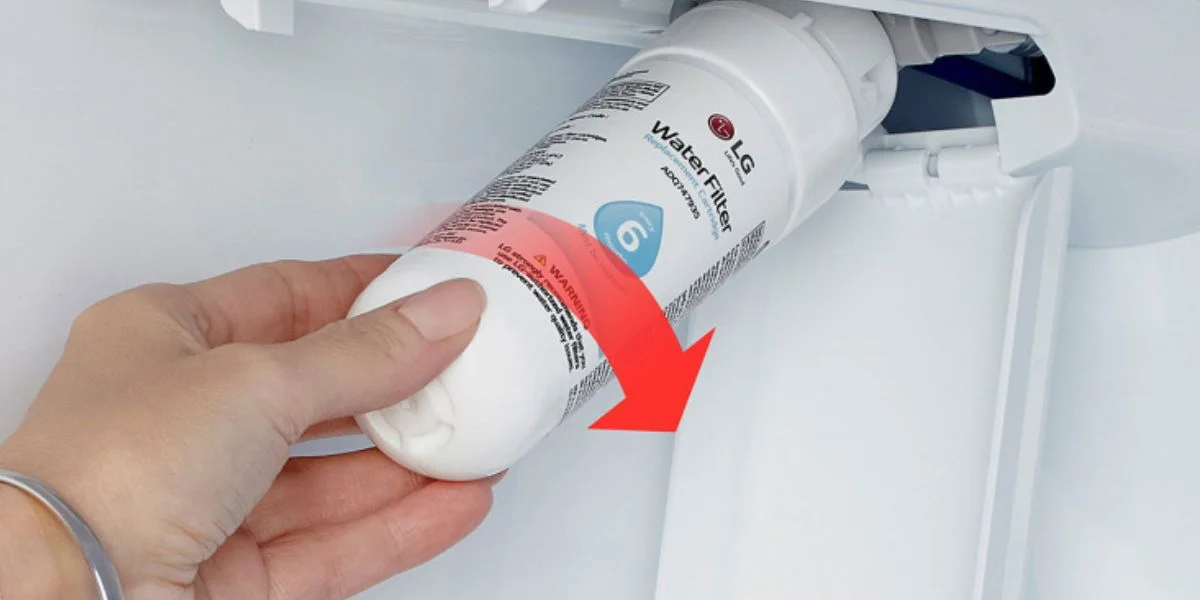

To Remove The Older Filter:

  1. Locate the filter on the top of the refrigerator behind the light cover.
  2. Once located, remove the top shelf. This will give you better access to the filter.
  3. Next, remove the light cover by pressing the release clip on the bottom of the cover. Then pull it out and up to remove it.
  4. At the bottom of the filter, you will see a Lock and Unlock indicator. Turn the filter to the Left to unlock it.
  5. The filter should now easily come out of the filter holder.

To Install The New Filter:

  1. Remove the red cap from the new filter while checking to see if any of the O-rings are damaged. If they are damaged, leaking may occur. If not, move onto the next step.
  2. Push the new filter straight into the filter holder.
  3. Once in the holder, turn the filter to the right to lock it into place. (The arrow on the unit should line up with the lock indicator on the filter.)
  4. Now, put the light cover and the shelf back into the refrigerator.
  5. Once everything is back into place, it is advised to press and hold a cup in the dispenser until the water starts dispensing. It may take up to 5 minutes, so be patient.
  6. When the water starts flowing, dispose of the first 2 gallons in order to fully flush out the lines.
  7. Once the first 2 gallons are disposed of, open the refrigerator and freezer to check for any leaks that may be coming from the filter.
LFX21971S | LFX21975S | LFX23961S | LFX25961 | LFX25971 | LFX25975S | LFX28977S | LMX219781S | LMX25981S | LMX28983S | LMX28987S | LSC24971S | LSC27931S | LSC27935S | LSC27937S | LSM211S | LSXS26466S

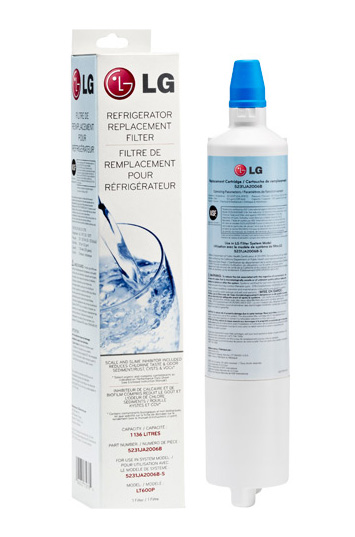

The Required Filter Model For Your Refrigerator Is LT600P.

LT600P

(The Filter Should Be Replaced Every 6 Months.)

To Remove The Older Filter:

  1. Locate the filter on the top of the refrigerator behind the light cover.
  2. Once located, remove the top shelf. This will give you better access to the filter.
  3. Next, remove the light cover by pressing the release clip on the bottom of the cover. Then pull it out and up to remove it.
  4. At the bottom of the filter, you will see a Lock and Unlock indicator. Turn the filter to the Left to unlock it.
  5. The filter should now easily come out of the filter holder.

To Install The New Filter:

  1. Remove the red cap from the new filter while checking to see if any of the O-rings are damaged. If they are damaged, leaking may occur. If not, move onto the next step.
  2. Push the new filter straight into the filter holder.
  3. Once in the holder, turn the filter to the right to lock it into place. (The arrow on the unit should line up with the lock indicator on the filter.)
  4. Now, put the light cover and the shelf back into the refrigerator.
  5. Once everything is back into place, it is advised to press and hold a cup in the dispenser until the water starts dispensing. It may take up to 5 minutes, so be patient.
  6. When the water starts flowing, dispose of the first 2 gallons in order to fully flush out the lines.
  7. Once the first 2 gallons are disposed of, open the refrigerator and freezer to check for any leaks that may be coming from the filter.
LFX25978 | LFX25991 | LFX28968 | LFX28978 | LFX28979 | LFX28991 | LFX28995 | LFX29927 | LFX29945 | LFX31925 | LFX31935 | LFX31945 | LFX31995 | LFX32945 | LFX33974 | LMX25986 | LMX25988 | LMX28988 | LMX30995 | LMX31985 | LSFD2591 | LSSB2791

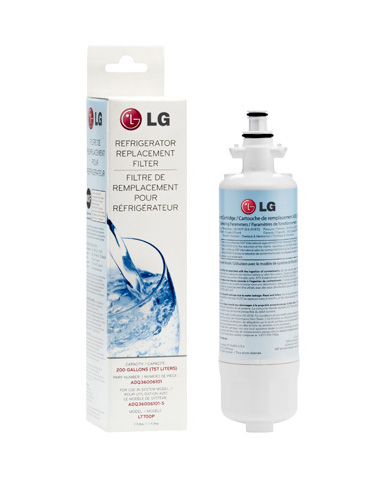

The Required Filter Model For Your Refrigerator Is LT700P.

LT700P

(The Filter Should Be Replaced Every 6 Months.)

To Remove The Older Filter:

  1. Locate the filter on the top of the refrigerator behind the light cover.
  2. Once located, remove the top shelf. This will give you better access to the filter.
  3. Next, remove the light cover by pressing the release clip on the bottom of the cover. Then pull it out and up to remove it.
  4. At the bottom of the filter, you will see a Lock and Unlock indicator. Turn the filter to the Left to unlock it.
  5. The filter should now easily come out of the filter holder.

To Install The New Filter:

  1. Remove the red cap from the new filter while checking to see if any of the O-rings are damaged. If they are damaged, leaking may occur. If not, move onto the next step.
  2. Push the new filter straight into the filter holder.
  3. Once in the holder, turn the filter to the right to lock it into place. (The arrow on the unit should line up with the lock indicator on the filter.)
  4. Now, put the light cover and the shelf back into the refrigerator.
  5. Once everything is back into place, it is advised to press and hold a cup in the dispenser until the water starts dispensing. It may take up to 5 minutes, so be patient.
  6. When the water starts flowing, dispose of the first 2 gallons in order to fully flush out the lines.
  7. Once the first 2 gallons are disposed of, open the refrigerator and freezer to check for any leaks that may be coming from the filter.
Side-By-Side And French Door Refrigerator's With A SlimSpace Plus Ice System:

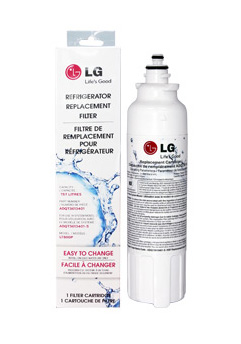

The Required Filter Model For Your Refrigerator Is LT800PC.

LT800P

(The Filter Should Be Replaced Every 6 Months.)

To Remove The Older Filter:

  1. Locate the filter on the top of the refrigerator behind the light cover.
  2. Once located, remove the top shelf. This will give you better access to the filter.
  3. Next, remove the light cover by pressing the release clip on the bottom of the cover. Then pull it out and up to remove it.
  4. At the bottom of the filter, you will see a Lock and Unlock indicator. Turn the filter to the Left to unlock it.
  5. The filter should now easily come out of the filter holder.

To Install The New Filter:

  1. Remove the red cap from the new filter while checking to see if any of the O-rings are damaged. If they are damaged, leaking may occur. If not, move onto the next step.
  2. Push the new filter straight into the filter holder.
  3. Once in the holder, turn the filter to the right to lock it into place. (The arrow on the unit should line up with the lock indicator on the filter.)
  4. Now, put the light cover and the shelf back into the refrigerator.
  5. Once everything is back into place, it is advised to press and hold a cup in the dispenser until the water starts dispensing. It may take up to 5 minutes, so be patient.
  6. When the water starts flowing, dispose of the first 2 gallons in order to fully flush out the lines.
  7. Once the first 2 gallons are disposed of, open the refrigerator and freezer to check for any leaks that may be coming from the filter.
Marvel

Follow The Steps Below To Replace Your Refrigerator's Water Filter.

For All Marvel Refrigerators

The Required Filter Model For Your Refrigerator Is 31104.

(The Filter Should Be Replaced Every 12 Months.)

*WARNING: If any air is trapped in the system, some water or the filter may eject. In order to keep this from happening be sure to always dispense water for 2 minutes before and after the filter is removed or replaced.

To Remove The Older Filter:

  1. The filter is located on the upper right hand corner of the fresh food compartment.
  2. Once located, turn the old filter counter clockwise, until it releases from the filter head.

To Install The New Filter:

  1. Rotate the new filter clockwise until it stops.
  2. Once the filter stops, snap the filter cover closed.
  3. Drain the water dispenser for about 2 minutes until the water runs steady. (This will reduce any water spurts that may occur.)
  4. During the initial use, allow about a 1-2 minute delay for the internal tank to fill with water.
  5. **Additional draining may be required in houses with poor water quality.

  6. The water filter should now be fully installed.
Miele

Follow The Steps Below To Replace Your Refrigerator's Water Filter.

For All Miele Refrigerators

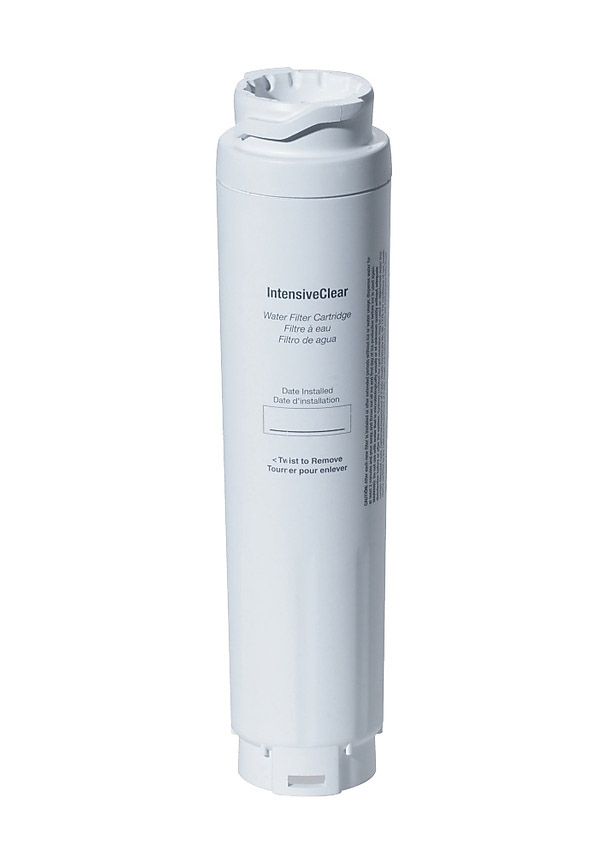

The Required Filter Model For Your Refrigerator Is KWF1000.

KWF1000

(The Filter Should Be Replaced Every 6 Months.)

When the display Shows the words "Filter" in Red, the filter will need to be replaced soon.

When the display Flashes the word "Filter" in Red, the filter must be changed.

*When replacing the water filter, please note that any air trapped in the system may cause water and the filter cartridge to eject forcefully. Please use caution when removing the filter.

To Remove The Old Filter:

  1. Locate the water filter on the base panel of your appliance.
  2. Once located, push the filter cap in and rotate it counter clockwise 180 degrees until the cap is once again in a horizontal position.
  3. Once turned, pull the old filter out of the refrigerator.
  4. Now remove the cap from the old filter to finish removing the old filter. (The cap should easily pull off of the old filter.)

To Install The New Filter:

  1. Remove the protective cap off of the new filter, and then push the cap from the old filter onto the new filter.
  2. Then, push the filter with the cap on in a horizontal position all the way into the opening in the base panel.
  3. Rotate the filter cartridge clockwise 180 degrees until the filter cap is once again in a horizontal position.
  4. The filter should now be fully installed.
  5. After installing the new filter, discard the first 24 hours of ice production.

To Reset The Filter Display Message:

  1. Press and hold both the "Filter" change indicator button and the "Access" button for approximately 5 seconds until a beep is heard.
  2. Once the "Filter" change indicator goes away, the filter indicator has been reset.
Samsung

Pay Close Attention To Where Your Water Filter Is Located.

Side-By-Side Refrigerator's With A Filter On The Bottom Right Corner (Refrigeration Side)

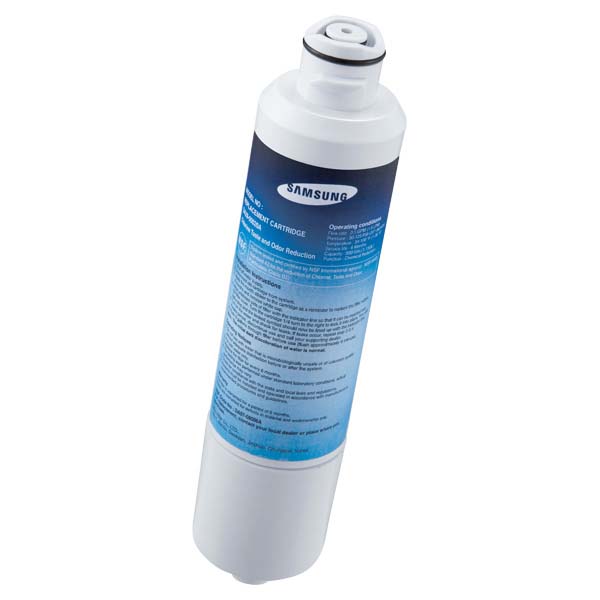

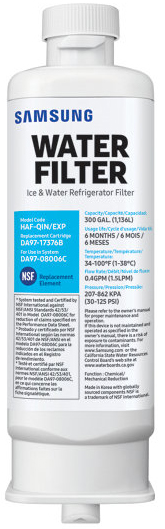

The Required Filter Model For Your Refrigerator Is HAF-CIN.

HAF-CIN

(The Filter Should Be Replaced Every 6 Months.)

For Models With An External Water Dispenser:

When the filter needs to be replaced a "Filter" indicator light will appear on the display.

For Models With An Internal Water Dispenser:

When the filter needs to be replaced a "Filter" indicator light will appear on the display.

To Remove The Old Filter:

  1. Locate the filter on the bottom right corner of the refrigeration side.
  2. Unlock the old filter by turning it about a quarter turn to the left (in the direction indicated by the UNLOCK arrow).
  3. Once unlocked, pull the filter straight out. (Keep it horizontal to minimize any water that may leak out.)
  4. *Sometimes, if the water pressure is strong, you may have difficulties removing the filter. If this is the case, shut-off the water supply valve, drain any remaining water from the dispenser, and then try to remove the filter again.

To Install The New Filter:

  1. Insert the new filter into the filter holder.
  2. Once inserted, turn it clockwise (to the right) until it locks into place.
  3. If inserted correctly, the arrows on both the filter and the refrigerator should line up.
  4. **If the water valve needed to be shut off, turn it back on at this time.

  5. Dispense up to 3 gallons of water, in order to remove any trapped air or impurities. (Repeat this step each time the filter is replaced.)

To Reset The Filter Display Message (For Models With An External Water Dispenser):

  1. Press and hold the "Filter Reset" button for 3 seconds, or until the display resets.
  2. If done correctly, the Filter Display Message should be reset.

To Reset The Filter Display Message (For Models With An Internal Water Dispenser):

  1. Press and hold both the "Fridge" button and the "Power Cool" button for 3 seconds, or until the display resets.
  2. If done correctly, the Filter Display Message should be reset.
French Door Refrigerator's With A Filter On The Bottom Center of the Refrigerator

The Required Filter Model For Your Refrigerator Is HAF-CIN.

HAF-CIN

(The Filter Should Be Replaced Every 6 Months.)

For Models With An External Water Dispenser:

When the filter needs to be replaced a "Filter" indicator light will appear on the display.

For Models With An Internal Water Dispenser:

When the filter needs to be replaced a "Filter" indicator light will appear on the display.

To Remove The Old Filter:

  1. Locate the filter on the bottom center of the refrigeration side, between the crispers.
  2. Unlock the old filter by turning it about a quarter turn to the left (in the direction indicated by the UNLOCK arrow).
  3. Once unlocked, pull the filter straight out. (Keep it horizontal to minimize any water that may leak out.)
  4. *Sometimes, if the water pressure is strong, you may have difficulties removing the filter. If this is the case, shut-off the water supply valve, drain any remaining water from the dispenser, and then try to remove the filter again.

To Install The New Filter:

  1. Insert the new filter into the filter holder.
  2. Once inserted, turn it clockwise (to the right) until it locks into place.
  3. If inserted correctly, the arrows on both the filter and the refrigerator should line up.
  4. **If the water valve needed to be shut off, turn it back on at this time.

  5. Dispense up to 3 gallons of water, in order to remove any trapped air or impurities. (Repeat this step each time the filter is replaced.)

To Reset The Filter Display Message (For Models With An External Water Dispenser):

  1. Press and hold the "Alarm / Filter Reset" button for 3 seconds, or until the display resets.
  2. If done correctly, the Filter Display Message should be reset.

To Reset The Filter Display Message (For Models With An Internal Water Dispenser):

  1. Press and hold both the "Fridge/ Power Cool" button for 3 seconds, or until the display resets.
  2. If done correctly, the Filter Display Message should be reset.
Side-By-Side Refrigerator's With A Filter On The Top Right (Refrigeration Side)

The Required Filter Model For Your Refrigerator Is HAFCU1.

HAFCU1

(The Filter Should Be Replaced Every 6 Months.)

When the filter needs to be replaced, a "Filter" indicator light will appear on the display.

To Remove The Old Filter:

  1. Locate the filter on the top right side of the refrigerator.
  2. Now, remove the top shelf located just underneath the filter in order to fully access the filter.
  3. Unlock the old filter by turning it counter clockwise until the "Lock" symbol on the filter lines up with the "Unlock" symbol on the refrigerator.
  4. Once in the unlocked position, simply pull the filter down to remove it.

    *Sometimes, if the water pressure is strong you may have difficulties removing the filter. If this is the case, shut-off the water supply valve and drain any remaining water from the dispenser. Now try removing the filter.

To Install The New Filter:

  1. Place the new filter into the filter holder and turn it clockwise until the "Lock" symbol on the filter lines up with the "Lock" symbol on the refrigerator.
  2. **If water valve needed to be shut-off, turn it back on at this time.

  3. Dispense up to 3 gallons of water, in order to remove any trapped air or impurities in the system.

To Reset The Filter Display Message:

  1. Press and hold the "Reset Filter" button for 3 seconds to reset the display message.
  2. If done correctly, the display message should now be reset.
Sub-Zero

To Find The Filter Your Refrigerator Requires, You Will Need To Know Either The Model, The Manufacture Date, or The Serial Number.

For Models BI-30U | BI-30UG | BI-36F | BI-36S | BI-36U | BI-36UG | BI-42S | BI-42SD

The Required Filter Model For Your Refrigerator Is 7023811.

7023811

(The Filter Should Be Replaced Every 12 Months.)

When the filter needs replacing, a water filter icon will appear on the control panel of the Built-In Unit.

To Access The Filter, Follow These Steps:

  1. The water filter is located behind the bottom grille frame.
  2. To remove the bottom grille, pull out on the bottom edge of the grille assembly and tilt the grille frame forward.

To Remove The Old Filter:

  1. To start, push the filter cartridge in and pull it out. (There will be water in the filter cartridge, so it is normal for a small amount of water to spill out.)
  2. Discard the filter to complete the removal of the filter.

To Install The New Filter:

  1. Remove the new filter from its packaging and carefully remove the plastic caps.
  2. Line up the cartridge so that the locking tabs can be inserted into the filter manifold.
  3. Push the cartridge in until you hear a click.
  4. The new cartridge should now be securely installed; this can be checked by seeing if it can be removed by pulling on it slightly.
  5. If the filter cannot be removed by pulling on it slightly, the filter has been installed correctly.

To Reset The Filter Display Message:

  1. Press and hold the "Filter Reset" button for 5 seconds.
  2. If done correctly, the water filter life monitor should be reset.
For Refrigerator's With A Serial Number That Is Prior To 4116297

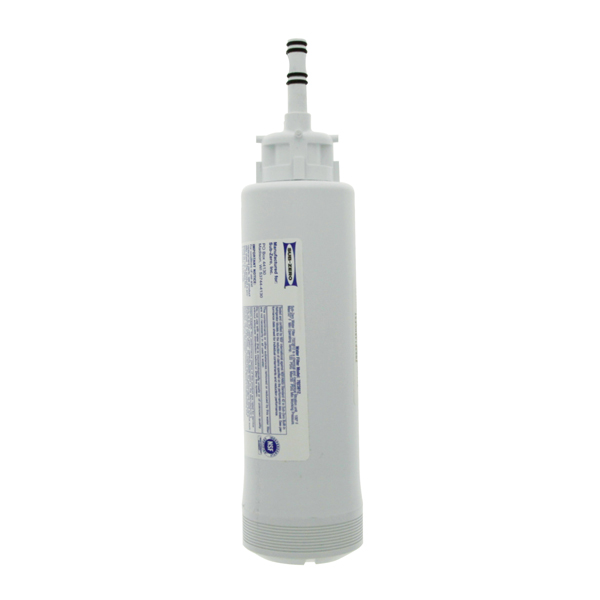

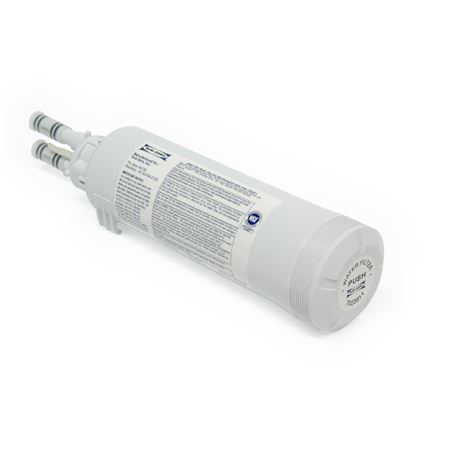

The Required Filter Model For Your Refrigerator Is 7023812.

7023812

(The Filter Should Be Replaced Every 12 Months.)

When the filter needs replacing, a water filter icon will appear on the control panel of the Built-In Unit.

To Access The Filter, Follow These Steps:

  1. The water filter is located behind the bottom grille frame.
  2. To remove the bottom grille, pull out on the bottom edge of the grille assembly and tilt the grille frame forward.

To Remove The Old Filter:

  1. To start, push the filter cartridge in and pull it out. (There will be water in the filter cartridge, so it is normal for a small amount of water to spill out.)
  2. Discard the filter to complete the removal of the filter.

To Install The New Filter:

  1. Remove the new filter from its packaging and carefully remove the plastic caps.
  2. Line up the cartridge so that the locking tabs can be inserted into the filter manifold.
  3. Push the cartridge in until you hear a click.
  4. The new cartridge should now be securely installed, this can be checked by seeing if it can be removed by pulling on it slightly.
  5. If the filter cannot be removed by pulling on it slightly, the filter has been installed correctly.

To Reset The Filter Display Message:

  1. Press and hold the "Filter Reset" button for 5 seconds.
  2. If done correctly, the water filter life monitor should be reset.
For 48" Refrigerator's (Models Beginning with BI-48 or Ending with 48PRO/48PROG) and Refrigerator's Manufactured After 2011

The Required Filter Model For Your Refrigerator Is 4204490.

4204490

(The Filter Should Be Replaced Every 12 Months.)

When the filter needs to be replaced, a "Replace Filter" indicator should be displayed.

To Access The Filter For Built-In (BI) Models or PRO48 Series Models:

  1. The water filter is located behind the bottom grille frame.
  2. To remove the bottom grille, pull out on the bottom edge of the grille assembly and tilt the grille frame forward.

To Access The Filter For New Generation Integrated Models:

  1. The water filter is located behind the kickplate at the bottom of the unit.
  2. To remove the kickplate, unscrew the screws at the bottom of the unit, and tilt the kickplate out and off of the unit.

To Remove The Old Filter:

  1. Rotate the cartridge counter clockwise 1/4 turn, and then pull it out. (There will be water in the filter cartridge, so it is normal for a small amount of water to spill out.)
  2. Discard the filter to complete the removal of the filter.

To Install The New Filter:

  1. Remove the new filter from its packaging and carefully remove the plastic cap.
  2. Then, insert the new filter into the manifold and turn it clockwise until the filter is seated in the unit.
  3. If done correctly, the filter should be fully installed.

To Reset The Filter Display Message On Built-In (BI) Models:

  1. Press and hold the filter reset button located on the left of the water filter for 5 seconds.
  2. This will reset the water filter life monitor.

To Reset The Filter Display Message On PRO48 Series Models:

  1. The control will automatically reset the water filter life monitor.
  2. If the "Replace Filter" indicator is no longer displayed, the filter life monitor has been reset.


To Reset The Filter Display Message On New Generation Integrated Models:

  1. To start, click "Reset Filter," this should result in a "Yes / No" prompt.
  2. Choose yes, if the water filter is replaced and the timer needs to be reset.
  3. If you choose no, you will exit this screen.

    If The Filter Display Message Is Not Present:

    1. Access the Option menu, by pressing the arrow on the left side of the home screen.
    2. Then access the Settings menu by pressing the gear icon on the options menu.
    3. Now, select "i" to access the Information menu.
    4. Click on "Filter" to access the Water and Air Filter menu.
    5. Once accessed, press and hold the "Dripping Water" icon on the far left to select the "Water Filter" settings.
    6. Now continue with the steps (listed above) when the change filter message is present.
For Ice Maker Model UC-15I

The Required Filter Model For Your Ice Maker Is 7012333.

7012333

(The Filter Should Be Replaced Every 6 Months.)

When the filter needs to be replaced, the display will show a Red "Replace Filter" Light.

To Remove The Old Filter:

  1. Locate the filter open the ice maker door, and find the filter on the bottom left side.
  2. Once located, turn the cartridge 1/4 turn counter clockwise.
  3. This will cause the filter to pop out.

To Install The New Filter:

  1. Place the filter back into the opening.
  2. Now, turn the cartridge 1/4 turn clockwise.
  3. If done correctly, the filter should be fully installed.

To Reset The Filter Display Message:

  1. Press the "Clean" key pad for 6 seconds.
  2. This should reset the counter and the light.
Thermador

Pay Close Attention To Which Model Your Refrigerator Starts With.

T30IB | T36IB

The Required Filter Model For Your Refrigerator Is REPLFLTR10.

REPLFLTR10

(The Filter Should Be Replaced Every 6 Months.)

When the filter is nearing the end of its lifespan, the refrigerator display will show "Filter" on the bottom left. When the filter needs to be replaced immediately, the display will show "FILTRCHG."

If the flow of water begins to weaken, change the filter sooner.

To Remove The Old Filter:

  1. Locate the filter on the base of the grille.
  2. Once located, rotate the filter cap clockwise until it stops, then pull the filter straight out.
  3. Remove the cap from the old filter, and then discard the old filter.

To Install The New Filter:

  1. Remove the cover and place the filter cap onto the new filter.
  2. Once the cap is on, push the filter into the opening in the base of the unit.
  3. Now, rotate the new filter clockwise until the cap is horizontal.

To Reset The Filter Display Message:

  1. Press and hold both the "Ice" and "Super Cool" buttons for 3 seconds until the display is reset.
  2. If done correctly, the display message should now be reset.
T42B | T48B

The Required Filter Model For Your Refrigerator Is REPLFLTR20.

REPLFLTR20

(The Filter Should Be Replaced Every 6 Months.)

If the flow of water begins to weaken, change the filter sooner.

To Check The Status Of Your Filter, Follow These Steps:

For Non-Dispenser Models:

  1. The filter status will be located on the temperature control panel. The display will show the following indicator messages:
    • Good - The filter is in "good" working order.
    • Order - It is almost time to replace the filter, you should most likely "order" a new one at this time.
    • Replace - "Replace" the filter at this time.

For Dispenser Models:

  1. The filter status will be located on the dispenser control display. To check the status of your water filter, press the "Filter" button. The follow colors will indicate the filter status:
    • Blue - The filter is in working order.
    • Yellow - It is almost time to replace the filter, you should most likely order a new one at this time.
    • Red - Replace the filter at this time.

To Remove The Old Filter:

  1. Locate the filter cartridge on the bottom grille of the refrigerator.
  2. Once located, press the eject button to the left of the filter cap, and then pull the cartridge straight out.
  3. Now, remove the cap from the old filter by rotating it counter clockwise until it stops.
  4. You may now discard the old filter.

To Install The New Filter:

  1. Align the ridge on the filter cap with the arrow on the new replacement filter.
  2. Once aligned, screw the cap clockwise onto the new filter until it stops.
  3. Then, remove the covers from the O-rings, while making sure that the O-rings remain in place.
  4. Push the filter into the opening in the base grille of the refrigerator until it clicks into place.
  5. The filter should now be fully installed.

To Reset The Filter Display Message:

For Non-Dispenser Models:

  1. Press and hold the "Filter Reset" button for 2 seconds, until the filter reset message is reset.
  2. If done correctly, the display message should be reset.

For Dispenser Models:

  1. Press and hold the "Filter" button for 3 seconds, until the filter display message is reset.
  2. If done correctly, the display message should be reset.
Whirlpool Family: Amana | Jenn-Air | KitchenAid | Maytag | Whirlpool

*Pay Attention To The Type Of Refrigerator You Have And Where Your Filter Is Located.

**Most Models Require Information On Exactly How The Filter Is Removed From Your Refrigerator.

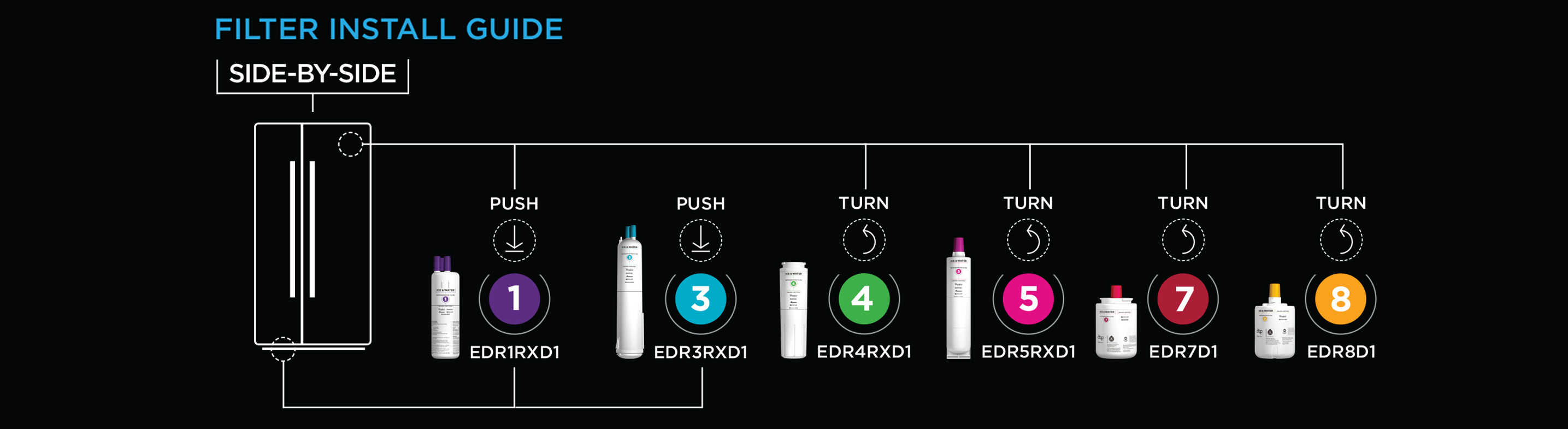

Side-By-Side Refrigerator's With A Water Filter On The Bottom Grill

Which Removal Method Is Required?

Quarter Turn:

If A Quarter Turn Is The Removal Method, The Required Filter Model For Your Refrigerator Is EveryDrop Filter 5.

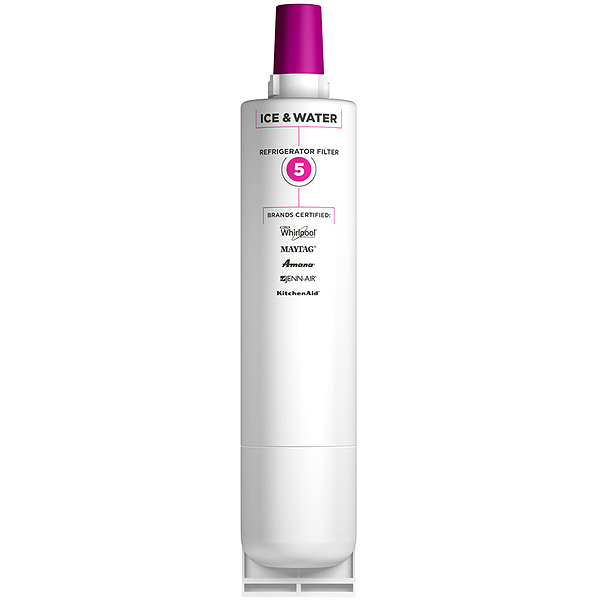

EDR5RXD1

Push:

If You Must Push The Filter To Remove It, The Required Filter Model For Your Refrigerator Is EveryDrop Filter 1 or EveryDrop Filter 3.

EDR1RXD1EDR3RXD1

*If your filter is skinny or slim, you most likely have the EveryDrop Filter 3.

Side-By-Side Refrigerator's With A Water Filter Inside On The Top Right Side

Which Removal Method Is Required?

Quarter Turn:

If A Quarter Turn Is The Removal Method, The Required Filter Model For Your Refrigerator Is EveryDrop Filter 5.

EDR5RXD1

Half Turn:

If A Half Turn Is The Removal Method, The Required Filter Model Will Depend On The Brand And Filter Type.

If Your Filter is Longer:

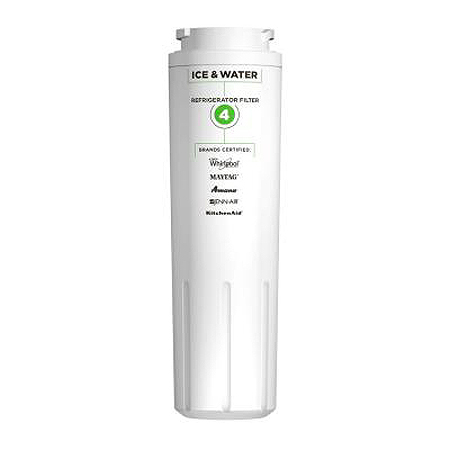

The Required Filter Model For Your Refrigerator Is EveryDrop Filter 4.

EDR4RXD1

For Shorter Filters It Will Depend On The Brand:

For Jenn-Air and Maytag Refrigerators The Required Filter Model For Your Refrigerator Is EveryDrop Filter 7.

EDR7D1

For KitchenAid and Whirlpool Refrigerators The Required Filter Model For Your Refrigerator Is EveryDrop Filter 8.

EDR8D1

Push:

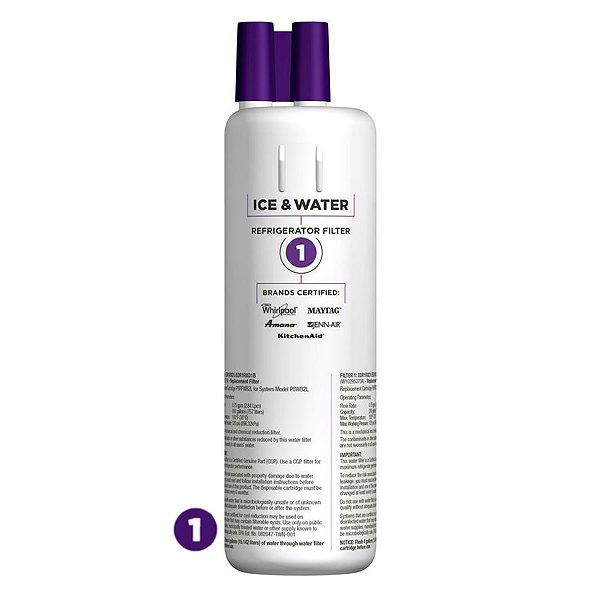

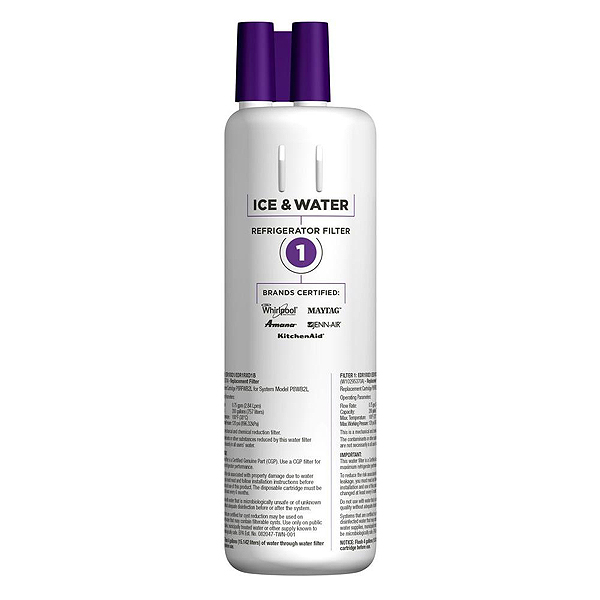

The Required Filter Model For Your Refrigerator Is EveryDrop Filter 1.

EDR1RXD1

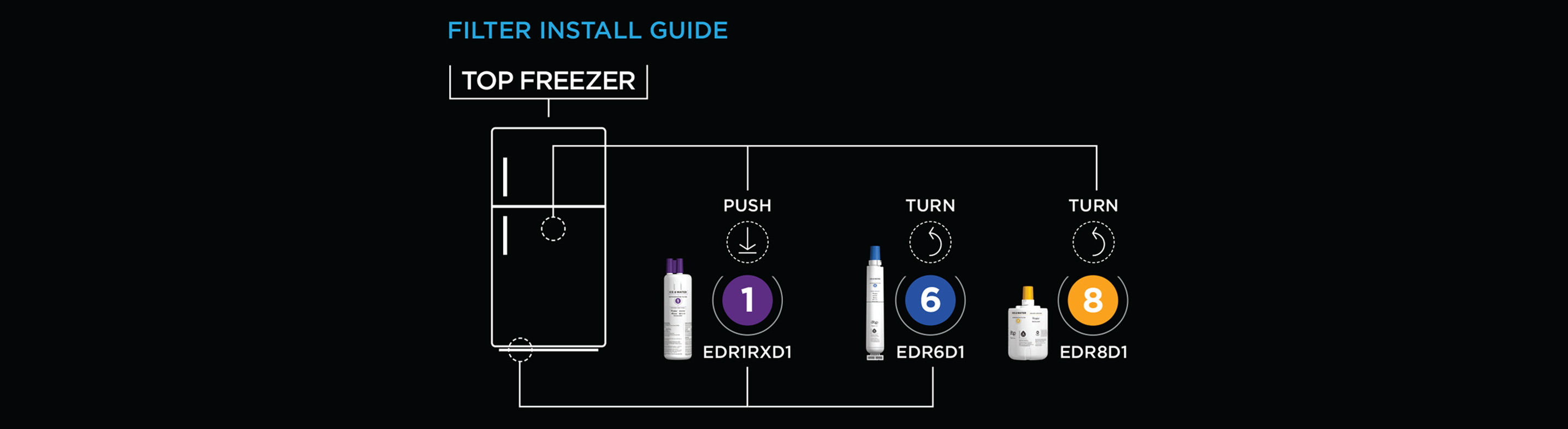

Top Freezer Refrigerator's With A Water Filter On The Bottom Grill

Your Filter Has A Half Turn Removal Method.

This Indicates That The Required Filter Model For Your Refrigerator Is EveryDrop Filter 6.

EDR6D1

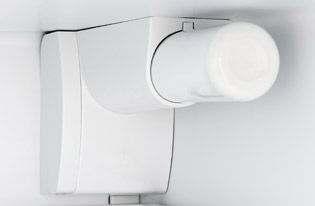

Top Freezer Refrigerators With A Water Filters Located Inside On The Top Right Side

Which Removal Method Is Required?

Half Turn:

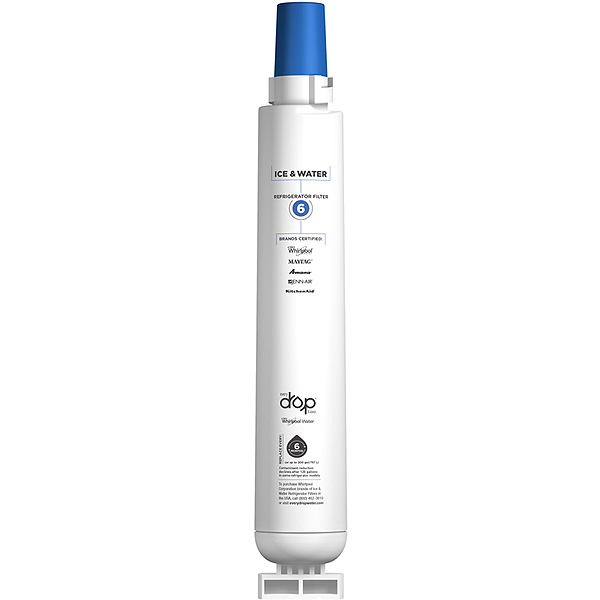

The Required Filter Model For Your Refrigerator Is EveryDrop Filter 6.

EDR6D1

Push:

The Required Filter Model For Your Refrigerator Is EveryDrop Filter 1.

EDR1RXD1

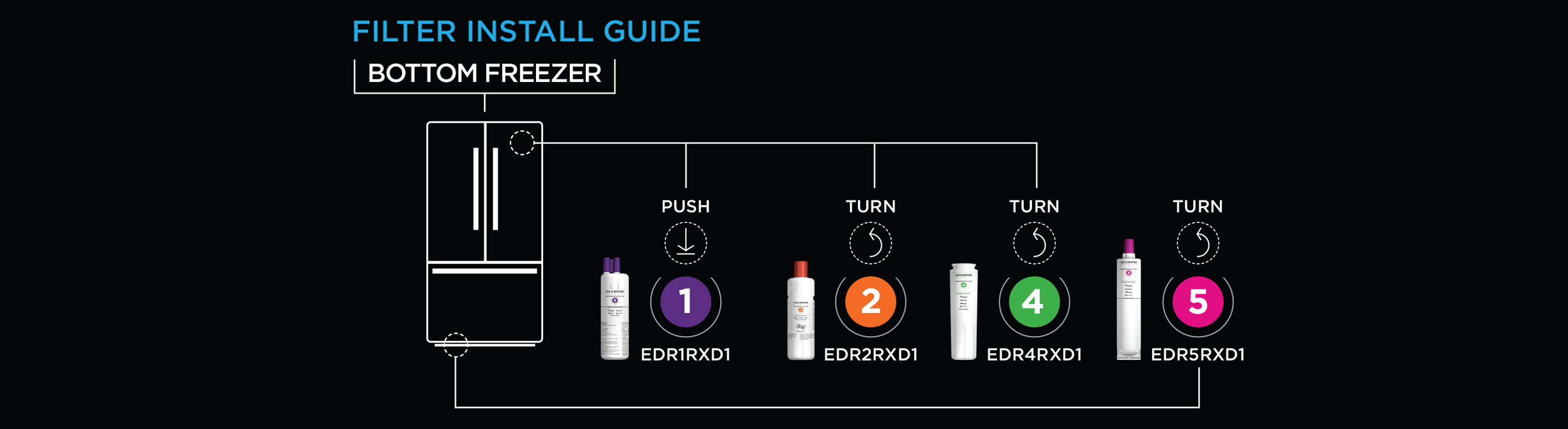

Bottom Freezer Refrigerator's With A Water Filter On The Bottom Grill:

Which Removal Method Is Required?

Quarter Turn:

The Required Filter Model For Your Refrigerator Is EveryDrop Filter 5.

EDR5RXD1

Push:

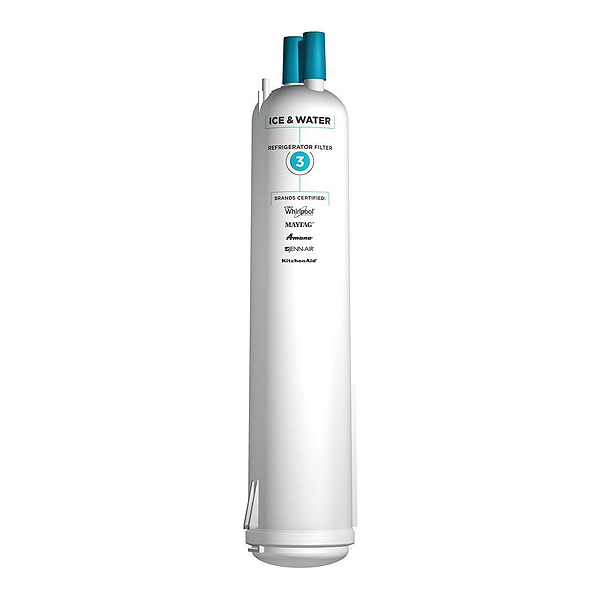

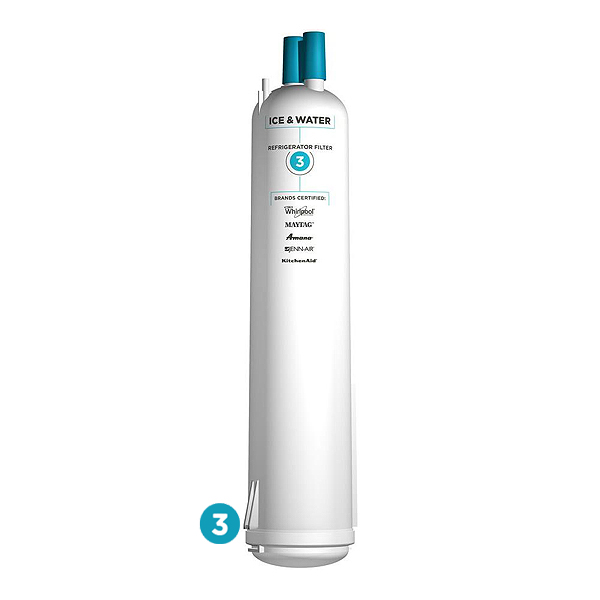

The Required Filter Model For Your Refrigerator Is EveryDrop Filter 3.

EDR3RXD1

Bottom Freezer Refrigerator's With A Water Filter Inside On The Top Right Side

Which Removal Method Is Required?

Half Turn:

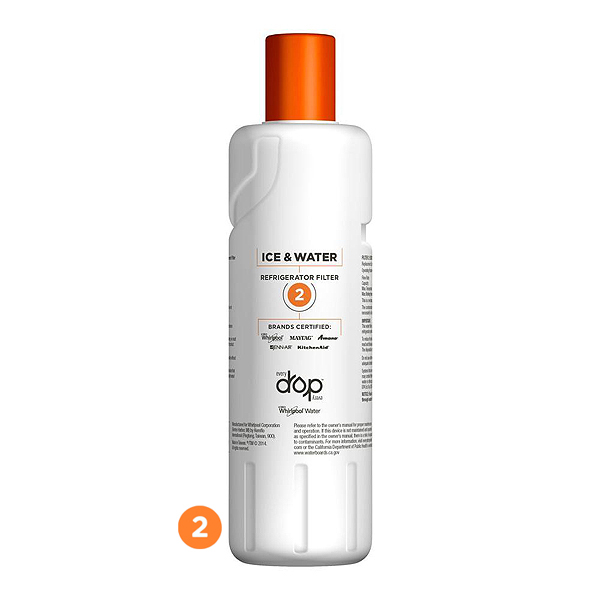

The Required Filter Model For Your Refrigerator Is EveryDrop Filter 2 or The EveryDrop Filter 4.

EDR2RXD1

EDR4RXD1

*If your filter has a flat head, you most likely have the EveryDrop Filter 4.

Push:

The Required Filter Model For Your Refrigerator Is EveryDrop Filter 1

EDR1RXD1

All Undercounter Refrigerators

The Required Filter Model For Your Refrigerator Is EveryDrop Filter 6.

EDR6D1
