JL Audio Monoblock Class D 1000 W Subwoofer Amplifier - 98363

5 out of 5 stars
|
Click to sign in and save to a list or registry
Shop JL Audio
Abt Model: JD10001 UPC: 699440783637
In Stock
Your Price: $319.99
Regular Price: $399.99
Save $80.00 through 02/29/2024
  • Abt Credit Card
    $54/mo suggested payments with 6 month special financing.
    Get a decision in seconds with no impact to your credit bureau score.
    or
Your Shipping ZIP Code:
Truck
Free Shipping & Free Returns
Estimated delivery date by UPS
When you order in the next 47 mins
Click to sign in and save to a list
Create or manage registry
See other products in Car Audio Amplifiers or JL Audio
Need help?
Contact a sales specialist

JL 98363 Audio Monoblock Class D 1000 W Subwoofer Amplifier

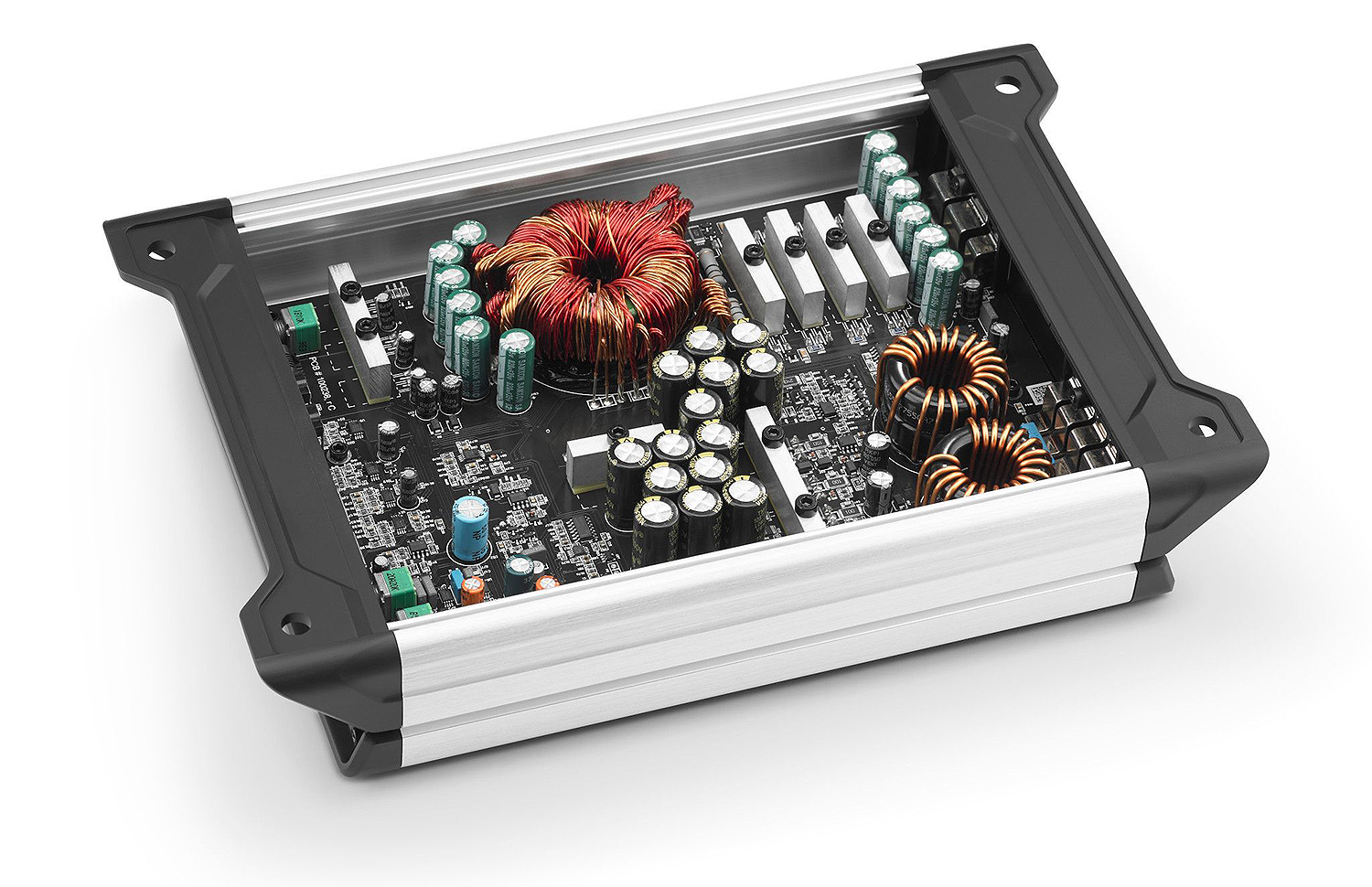

Designed to produce a serious 1000 watts into 2 ohms (14.4V, 1% THD), the JD1000/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.

The JD1000/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.

The JD1000/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.

Features

Technology

  • NexD™ Switching Technology
    NexD™ amplifier technologies produce exceptional audio quality, unsurpassed total efficiency and high power from very compact amplifier designs.
  • Differential-Balanced Inputs
    JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.

Specifications

  • Rated Continuous (RMS) Power @ 14.4 V
    • @ 4 Ω: 600 W RMS x 1
    • @ 3 Ω: 800 W RMS x 1
    • @ 2 Ω: 1000 W RMS x 1
    • @ 1.5 Ω: N/A
  • Rated Continuous (RMS) Power @ 12.5 V
    • @ 4 Ω: 500 W RMS x 1
    • @ 3 Ω: 650 W RMS x 1
    • @ 2 Ω: 800 W RMS x 1
    • @ 1.5 Ω: N/A
  • General
    • Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
    • S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    • S/N Ratio, referred to 1 W: >50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    • Damping Factor @ 4 Ω: >1000 / 50 Hz
    • Damping Factor @ 2 Ω: >500 / 50 Hz
    • THD+N @ Rated Power: <1% @ 2 Ω per Ch.
    • Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
    • Min.Copper Power / Ground Wire Gauge: 4 AWG wire
    • Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)
  • Signal Processing
    • Filter Mode(s): Low-Pass only
    • Filter Slope(s): 12 dB/octave
    • Filter Frequency Range: 50 Hz - 500 Hz
    • Detented, Calibrated Filter Freq. Potentiometer: No
    • Filter Defeat Function: No
    • Infrasonic Filter: No
    • Bass Boost EQ: Yes
    • Output Polarity Switch: No
    • Remote Subwoofer Level Control: Optional (RBC-1)
    • Remote Bass EQ Boost Control: No
    • Pass-Through Preamp Output: Buffered

Approximate Dimensions

  • Height: 2.10"
  • Width: 11.40"
  • Depth: 7.50"

Approximate Weight

  • Shipping: 11 lbs

Warranty Information

  • Manufacturers Warranty(authorized online retailer): 2-Years Parts and Labor
