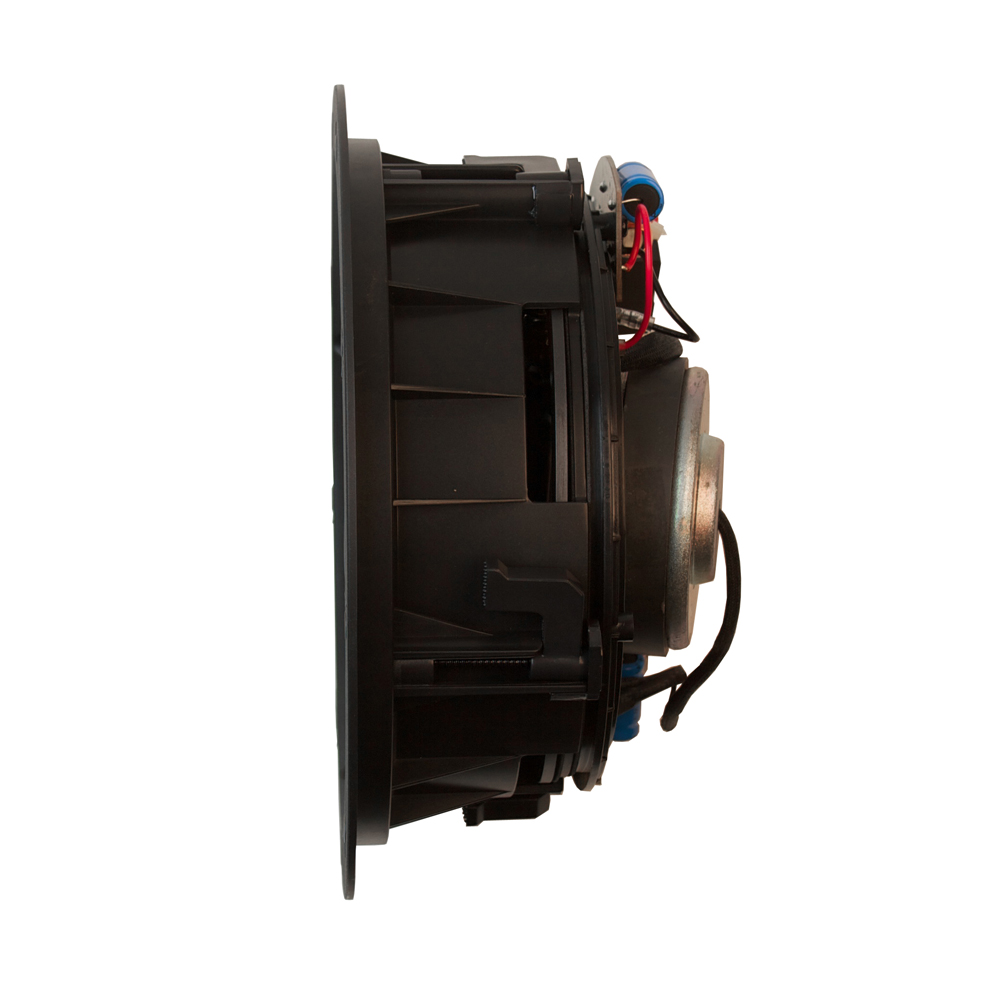

Klipsch 6.5" White Pivoting In-Ceiling Speaker, Model CDT-3650-C II (Sold As Each)
With integrated whole-house audio systems becoming more popular than ever, Klipsch designed the CDT-3650-C II to meet the market's demand for a high-performance in-ceiling loudspeaker that easily challenges the inherent limitations of fixed locations.
Thanks to a patent-pending gimbal mechanism known as Controlled Dispersion Technology (CDT) both the high and low frequencies of the CDT-3650-C II can be directed towards the listening area. With the 100 degree symmetrical Tractrix® Horn, directing sound is more accurate than a typical dome tweeter which disperses a wider breadth of sound, leading to more reflected sounds that blur sonic details. The 6.5-inch IMG woofer also has great positioning capabilities. It can rotate a full 360 degrees and then shift 15 degrees in any direction. This flexibility combined with the swiveling tweeter puts you in complete control of where the sound will go.
The addition of a Linear Travel Suspension to the tweeter increases high frequency detail and smoothness. Other professional grade features such as a premium network and treble and bass contour switches help the CDT-3650-C II establish a new benchmark in architectural audio excellence.
Available in a paintable white finish, the CDT-3650-C II can be paired with the Klipsch IK-650-C installation kit (sold separately). With a mud ring breakaway wire tie and color-coded brackets, it also includes perforated metal wings that easily fasten to the studs via screws staples or nails. It can also be paired with the ME-650-C fire rated speaker enclosure (sold separately) to meet local building codes and/or reduce sound transfer to adjoining rooms.
Features:
- Horn-loaded technology increases acoustic output while significantly reducing distortion
- Controlled Directivity Technology™ directs high and midbass frequencies to the main listening area
- Treble attenuation switch
- Elegant new, low-profile SlimTrim™ magnetic grille
Specifications:
- Built From: 2012
- Crossover Frequency: 2800Hz
- Enclosure Material/Type: ABS/Infinite baffle, front flush with wall
- High Frequency Driver: 1" (2.54cm) Aluminum diaphragm compression driver mated to a swiveling 100° round Tractrix® Horn
- Low Frequency Driver: 6.5" (16.51cm) pivoting IMG cone woofer
- Nominal Impedance: 8 ohms compatible
- Power Handling: 50W RMS / 200W Peak
- Recommended Amplifier Power: 100 W
- Sensitivity: 93dB @ 2.83V / 1m
- Wire Gauage Accommodated: 12 ga
Approximate Dimensions:
- Diameter: 9.5"
- Cutout Dimensions: 9.5"
- Mounting Depth: 5.4"
Approximate Weight:
- Unit: 6.8 lbs
- Shipping: 9 lbs
Warranty Information:
- Manufacturer's Warranty (authorized online retailer):
- Klipsch Group, Inc. warrants to the original retail purchaser that this product will be free from defective materials and workmanship for five (5) years from the date of purchase, subject to the limitations below. This warranty period is not extended if we repair or replace the product. Except as limited below, if this product proves defective in either material or workmanship, KGI, at its option, will (a) repair the product, or (b) replace the product, at no charge for parts or labor. If the product model is no longer available and cannot be repaired effectively or replaced with an identical model, KGI at its sole option may replace the unit with a current model of equal or greater value. In some cases, modification to the mounting surface may be required where a new model is substituted. KGI assumes no responsibility or liability for such modification. To obtain a repair or replacement under the terms of this warranty, you must return the product to the dealer from which it was purchased with your original receipt.
- Limitations:
- This limited warranty does not cover failure of the product arising, in whole or in part, from improper installation, storage, transportation, misuse, abuse, accident, neglect, mishandling, unauthorized repair, modification, or wear from ordinary use or environmental deterioration.
- This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to other components or premises which may result for any reason from the failure of the product.
- This limited warranty is null and void for products not used in accordance with KGI’s instructions.
- This limited warranty is null and void for products with altered or missing serial numbers and for products not purchased from Klipsch Group, Inc. or an authorized dealer.
- This limited warranty terminates if the original retail purchaser sells or otherwise transfers this product.
- This limited warranty is null and void for defects or damage caused by installation or repair performed by any person or entity other than a Klipsch authorized installer or dealer.
|
