Sony Mobile ES 6-channel Power Amplifier - XM6ES
Ask Bolt?
Shop Sony
Abt Model: XM6ES
Call for availability
Your Price:
$898
Special financing as low as $75/mo
$75/mo
suggested payments with 12 month special financing.
Get a decision in seconds with no impact to your credit bureau score.
or
Email
Notify me when this item is available
See other products in
Ask Bolt?
Sony XM6S Mobile ES 5-channel Power Amplifier

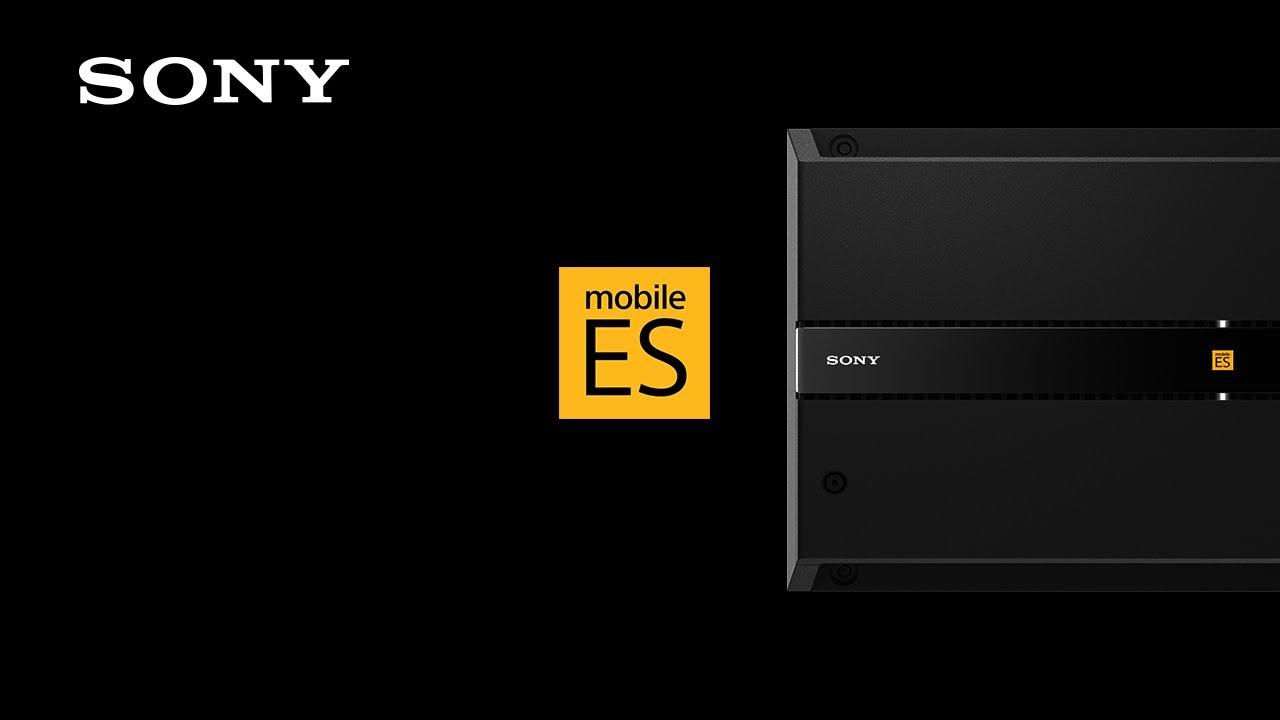

Meet the XM-6ES Mobile ES™ car amplifier. This High-Resolution Audio capable 6-channel amp can be connected to a variety of sources, and you can enjoy various system configurations. Hear your music brought to life with an extended frequency response driven by 100W x 6 (330W x 3 bridged) RMS output power.
Key Features
- 100W x 6 (330W x 3 bridged) RMS output power at 4 ohms
- 165W x 6 RMS output power at 2 ohms
- High-Resolution Audio compatible
- Signal summing for seamless connection to factory audio and combined pre-outs
- Updated connection terminal/control panel design, and supplied bass remote
Features
- High-Resolution Audio Compatible
Enjoy the subtlest nuances of studio-quality sound. A range of premium circuit components work together for pitch-perfect sound reproduction, giving every road trip soundtrack it deserves. - Powerful Sound with Astonishing Clarity
Enjoy dynamic sound from the highly efficient class-D amplifiers, boosting your in-car music, providing a variety of speaker configurations. - Minimal Interference Design
Sony’s expertise and long years of engineering experience with digital amplifiers has made it possible to realize a compact and powerful amplifier, with uncompromising sound quality. - Optimized Power Blocks
The power supply block is optimally designed for low-noise, highly efficient electric power transmission, where the DC converter with a toroidal core transformer is chosen for less electro-magnetic interference. To reproduce delicate ultra-high-frequency sound, each channel block and the class-D amplification are all isolated with their own ground circuitry, minimizing any signal interference. - Select Components for Superior Sound
The upgraded inductors with OFC wires are selected for lower internal resistance and improved sound character, while the low impedance electrolytic capacitors contribute to clear and precise sound reproduction. - High-Quality Speaker/Power Terminal
The speaker and power terminal features hex screws, providing a durable method of tightening the wire connections while accepting bare wire or wire ferrules for superior electrical performance and high-quality sound, and safe connection. - Sturdily Built Structures
The rigid, 1.2 mm, cross-braced bottom plate reduces resonance by approximately 50 % and shifts resonance peaks away from the harsh vehicle vibration frequency bands, upgrading damping performance dramatically. - Enhanced Logical Control and Connection Placement
Controls and connections are logically placed for easy understanding and use. The carefully considered layout ensures both intuitive operation and simple installation. - Clear Labels and Values
The redesigned control panel is logically grouped, and clearly labelled for hassle-free setup.
California customers:
General
Color
Black
Channel Configuration
6-Channel
Max Power Output
Output power: CTA Rated At 4 ohm: 100Wx6 at 1kHz,1% THD, CTA Rated At 4 ohm-Bridged: 330Wx3 BTL at 1kHz,1% THD, CTA Rated At 2 ohm: 165Wx6 at 1kHz,1% THD, Maximum (14.4 V) At 4 ohm: 1080W, Maximum (14.4 V) At 2 ohm: 1620W
Amplifier Class
Class D
Frequency Response
10Hz - 40kHz
Bass Boost
No
Low Pass Filter
Variable (50 - 500 Hz)
Low-Pass Filter Slope
12dB/oct
High Pass Filter
Variable (500 - 5 kHz)
Total Harmonic Distortion
< 0.05%
Bluetooth
No
Gold Plated Connectors
Yes
Warranty Information
Parts Warranty
3 Years
Labor Warranty
3 Years
Approximate Weight
Unit Weight (lbs.)
8.95
Package Weight (lbs)
11
Approximate Dimensions
Height (in)
2.36
Width (in)
14.96
Depth (in)
8.46
Package Size HxWxL (in)
18 x 5 x 12
Guides
Owner's Manual
Frequently Asked Questions
-
The amplifier delivers 100 watts RMS per channel at 4 ohms across six channels, 165 watts RMS per channel at 2 ohms, and 330 watts RMS per channel when bridged at 4 ohms. Maximum power output reaches 1080W at 4 ohms and 1620W at 2 ohms under 14.4 volts.
-
Yes, it is compatible with high-resolution audio, reproducing detailed and nuanced sound quality to enhance music playback with premium circuit components designed for studio-quality sound.
-
The frequency response ranges from 10Hz to 40kHz, allowing it to deliver extended bass and crisp high-frequency audio suitable for a wide range of music genres and sound systems.
-
It features variable low-pass filters adjustable between 50 Hz to 500 Hz with a 12dB/octave slope, and high-pass filters adjustable between 500 Hz to 5 kHz, providing flexibility to tailor the sound output to your speaker setup.
-
The amplifier employs minimal interference design with isolated channel blocks and a specially chosen DC converter with a toroidal core transformer, significantly reducing electromagnetic interference and ensuring clear sound reproduction.
Key Features
- 6-Channel Configuration
- High-Resolution Audio Compatible
- Minimal Interference Design
- High-Quality Speaker/Power Terminal
- Amplifier Class D
- Sturdily Built
- Optimized Power Blocks
- Black Finish
