Kitchen Range Buying Guide

A comprehensive range guide that will give you all the information you need to know when shopping for a new kitchen range.

Getting Started

One of the hardest working appliances in your kitchen is the range. A range is really two appliances in one, a set of burners for cooking with an oven underneath. Decide whether you are looking for a gas, electric or dual fuel range and if you need a free standing, slide-in or drop-in range. Abt is here to help you break down what you need in a range to help make your decision.

When working with hot equipment like a range, safety is extremely important, especially around infants and children. Some ranges have programs available on the oven, so you can start and stop the cooking process in your absence. Many cooktops include hot-surface indicator lights to remind you the cooktops are still hot. Some cooktops even offer safety knobs that require a simple gesture to turn them on or off.

Do I Need An Electric or Gas Range?

When deciding between a gas and electric range there are some external considerations to take into account. To start, let's look at what connections you will need to have in order to supply your stove with the appropriate amount of power. Both electric and gas ranges need to be connected to a source of electricity in order to function. Gas ranges only require a standard 110v Outlet in order to work. While electric ranges require more electricity than the standard 110v can supply.

Electric Range Connections:

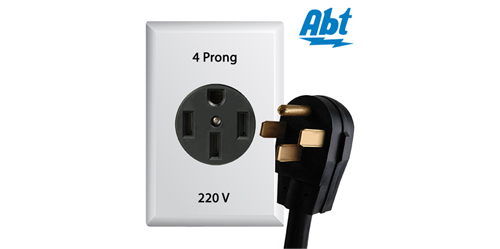

Electric Ranges require more power than your normal receptacles can provide, receptacles are more commonly known as wall outlets. Electric ranges need a 220v power supply in order to function.You can quickly tell whether a receptacle can handle an electrical range because you won't be able to plug any of your normal electronics into it. For example, your phone charger will not be able to be plugged into it. To make it simple, we have provided an image guide below for reference.
Electric Range Connections

Gas Range Connections:

Gas Ranges require, well, gas. You will need to have a gas line hook-up from which your range can draw from. Alongside the gas connection, the range will also need electricity in order to power the internal components and create a spark for the gas to ignite. A standard 110v is all the range will require to operate properly. You can quickly identify a 110v receptacle because it is what you would plug any normal appliance into like a toaster or your cell phone charger.

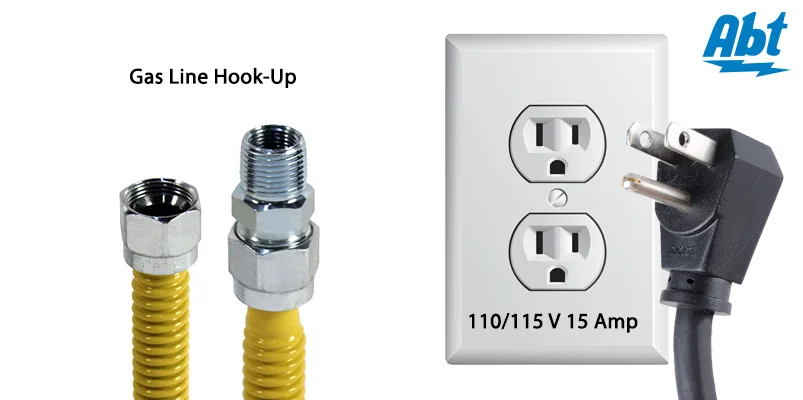

Gas Range Connections

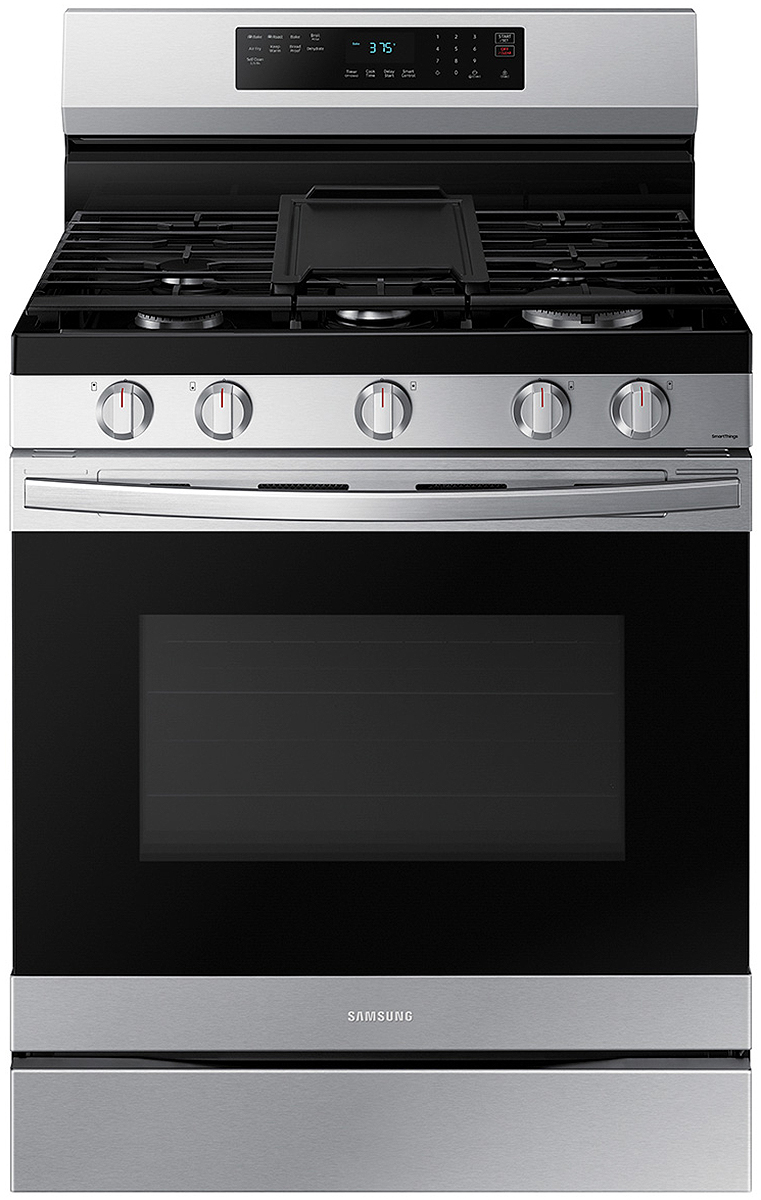

A gas range must have access to a gas hookup and are available in open and sealed burners. Open burners have large openings in the cooktop for the burners with a removable cooktop drip pan. Sealed-surface burners are set below the surface of the countertop and are attached directly to the cooktop. A gas range typically has a 15,000-BTU power burner and a 5,000 BTU simmer burner. Sizes range from 20" to 40".

Electric and Induction

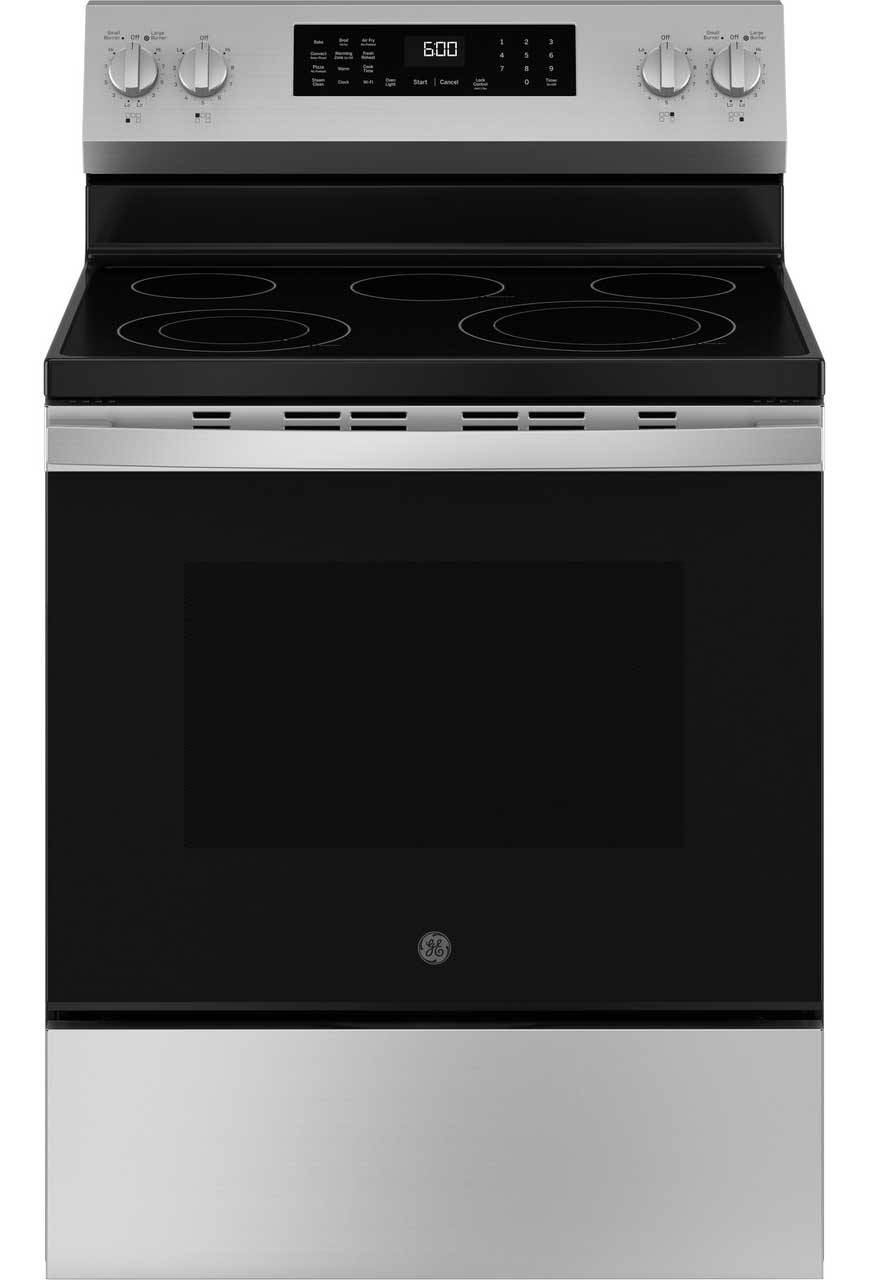

Electric ranges are available with a coil, smooth-top or induction element. Coil elements provide even heat distribution when cooking, the more rings a coil has, the more even the distribution. Smooth-top elements are located under the cooking surface, which allows for easy cleanup on the uninterrupted surface. Induction elements use the power of electromagnetic waves to turn the bottom of the pot or pan into the active heating surface. An electric range's power burner has at least 3,200 watts of power and 1,200 to 1,500 watts for the simmer burner. Those who bake often will enjoy the even and consistent heat of an electric oven. Sizes range from 20" to 36".

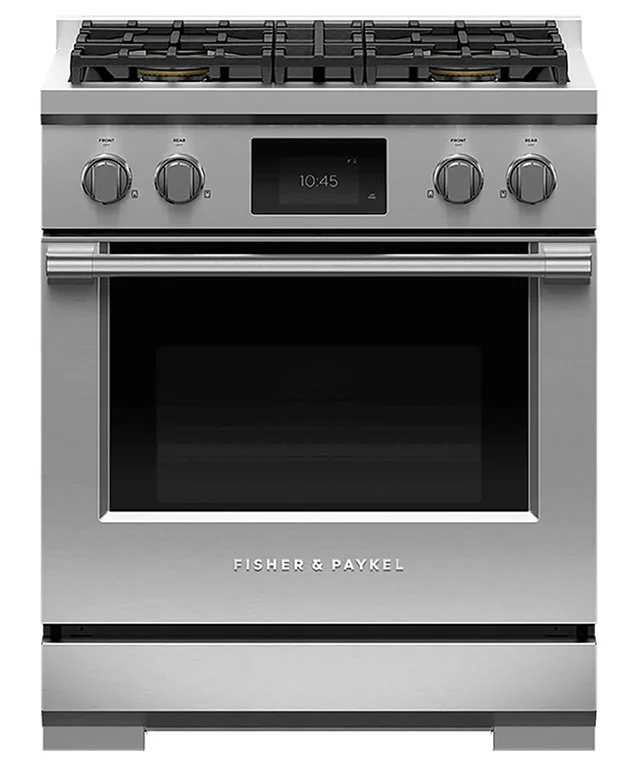

Dual Fuel

A dual-fuel range combines the advantages of both electric and gas ranges. A gas cooktop provides the precise burner control that's only available with an open flame, while the electric convection oven creates the consistent, even heating required for baking the perfect dish every time. Most dual-fuel ranges require a 240-volt outlet in addition to a gas hookup.


Free standing

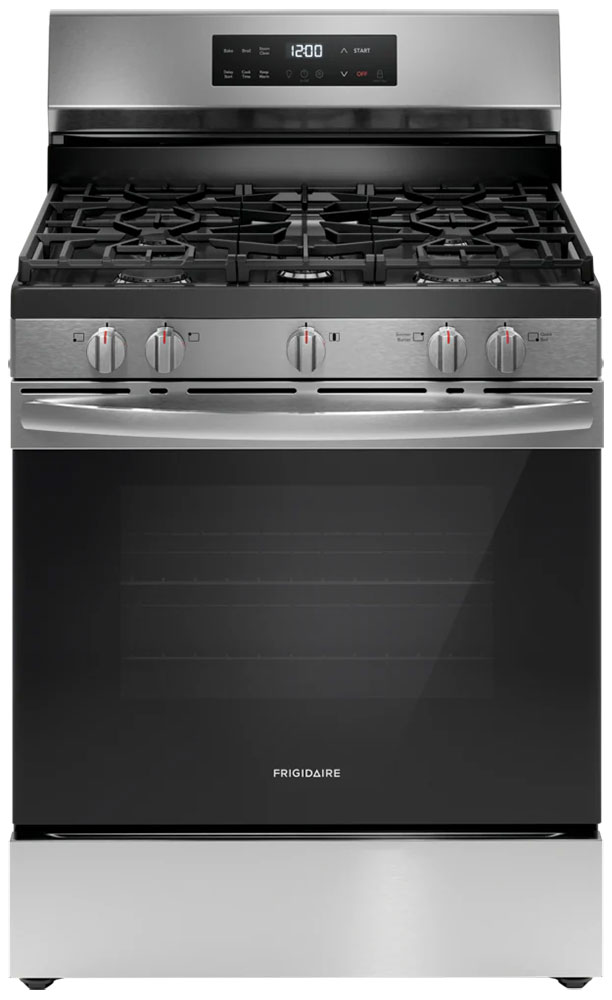

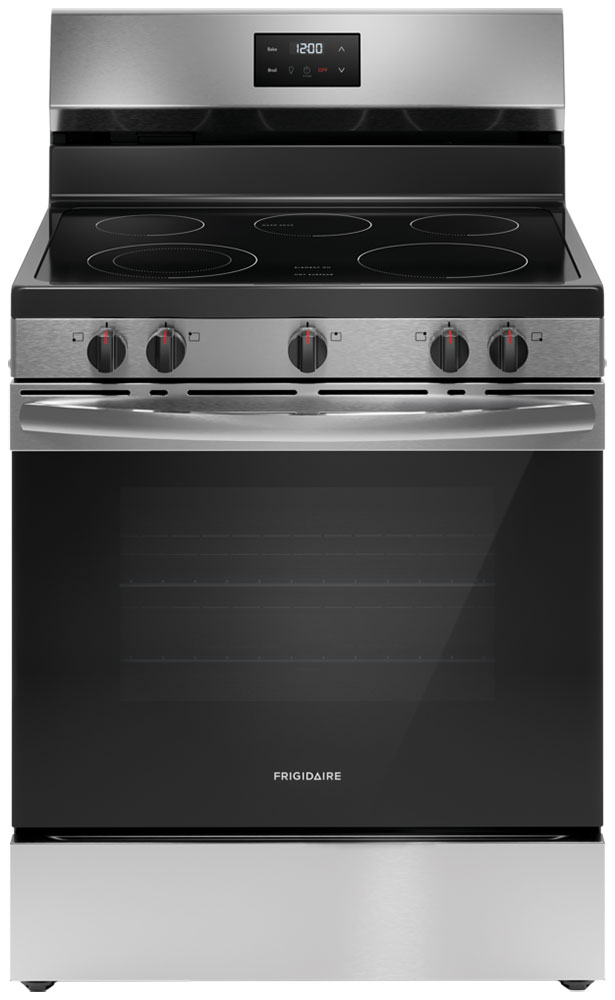

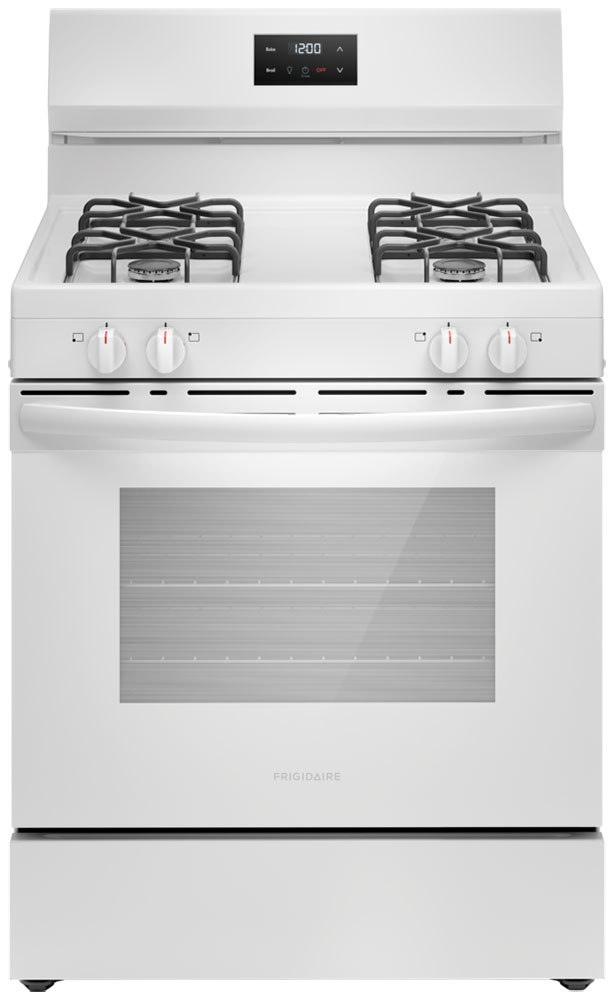

Free standing ranges have finished sides and a backsplash. They can go between cabinets, at the end of a cabinet run or stand alone. Electric ranges have controls on the backsplash while gas ranges have controls in the front.

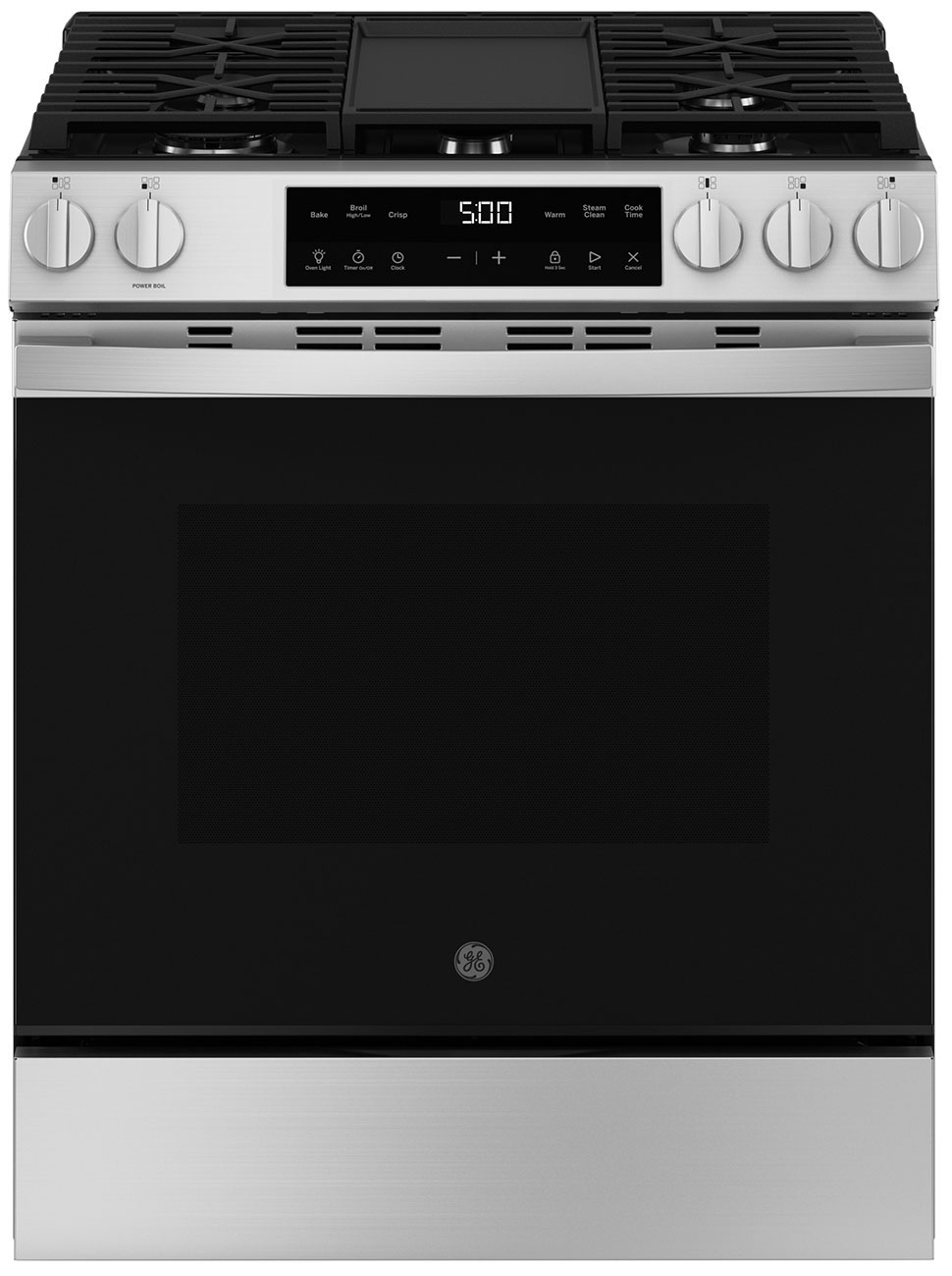

Slide-in ranges have a seamless built-in look with no backsplash and controls on the front. The sides are not finished or enclosed, so they require a cabinet on both sides.


Drop-in ranges look similar to slide-ins but may require cabinet modification for a tight fit. You can tell slide-ins by the strip of cabinetry under their ovens. Their controls are are located on the front.

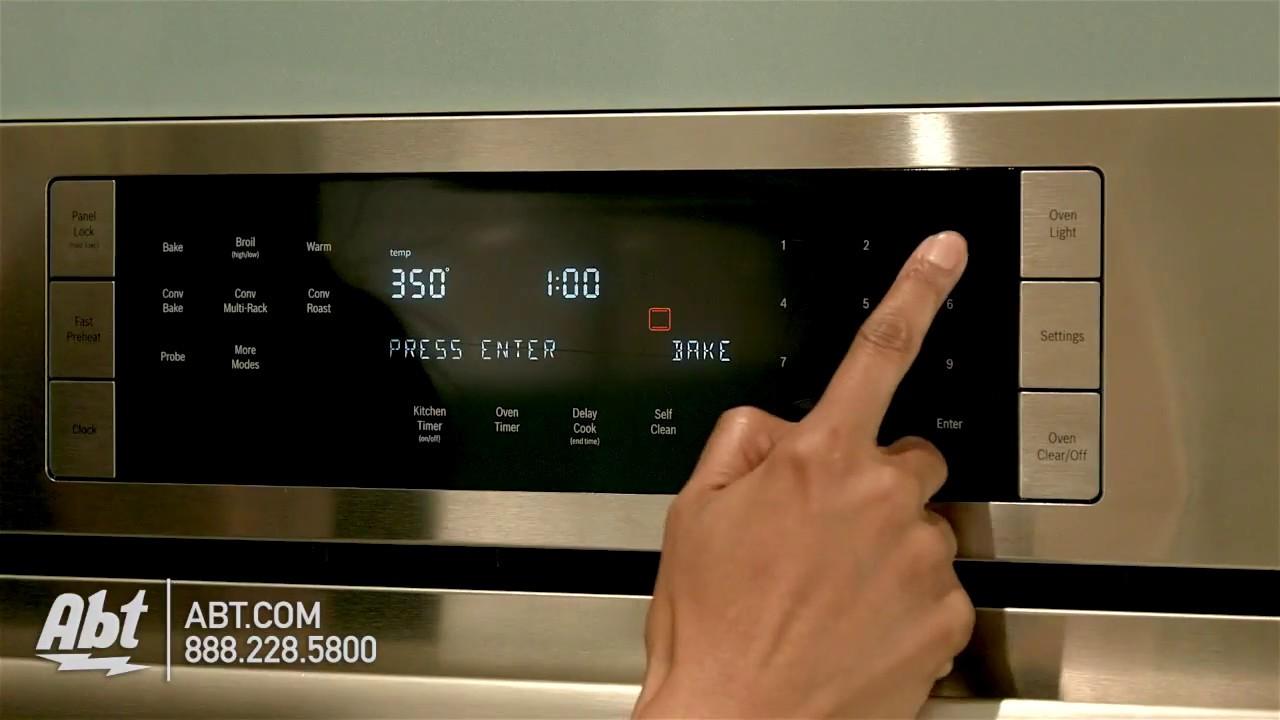

Convection cooking uses a fan in the back of the oven to circulate air over, under and around foods, to cook approximately 30% faster than conventional baking. Convection ovens allow you to choose between conventional baking and roasting or convection baking and roasting. A turkey roasted in a convection oven will brown all over, rather than just on top.

Electronic Controls

For the most accurate temperature adjustment, go with a digital or touch-activated screen control. This control is simple to use, and its flat surface is great for fast and easy cleaning. This style is available on electric cooktops.

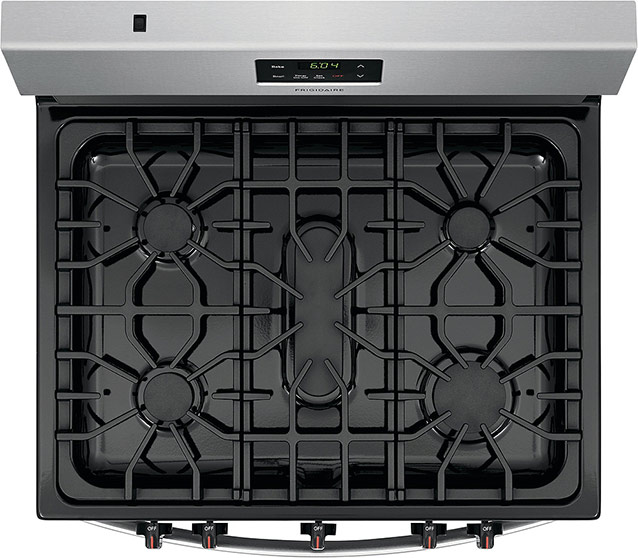

The grates on a gas cooktop vary in material and design, and are determined mostly by the price you pay for a range. The least expensive ranges have thin steel grates that cover only the burners. Upscale models generally have beefier grates made of porcelain-coated cast iron. These grates are also sometimes continuous, covering the whole cooktop. This allows you to easily slide pots on and off the burners. The most expensive, pro-style ranges typically have even heavier cast-iron grates that are almost always of the continuous design.

Warming Drawer

Warming drawers can keep hot foods warm or heat serving bowls and plates. It can also be used as a storage drawer. Keeps food warm and moist without cooking it any further.

Double Oven

Ranges that feature double ovens have two separate ovens to let you cook or warm at different temperatures. Typically, double ovens are built-in and feature two conventional ovens, although they may also be available in various combinations including conventional, convection, and microwave ovens.

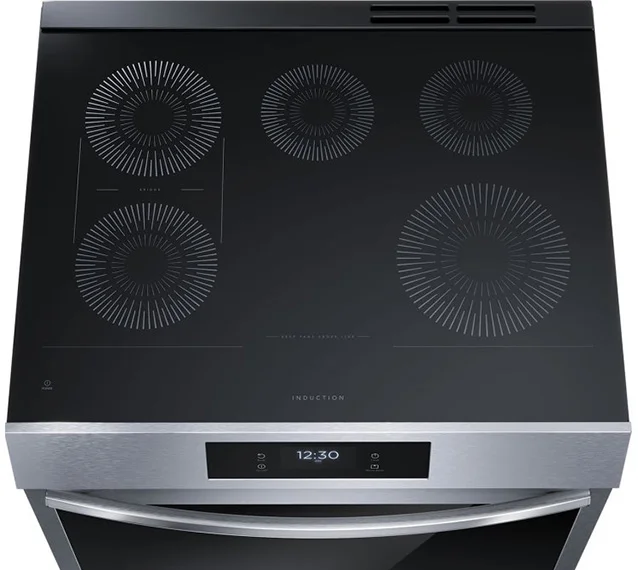

An induction-cooker element utilizes electromagnetism generated by electricity in the element under the unit's ceramic surface. Placing a magnetic material like a cast-iron skillet above the element "induces" energy, or heat, into the skillet. Induction cooktops require special pots and pans to function.

Self Cleaning

Insulated and designed with a cycle that raises the oven temperature to bake away food deposits. After the cycle is done, wipe out the oven with a damp cloth.


A type of heating element found on electric cooktops that delivers heat through a piece of metal wound in a spiral and set in a recessed area.

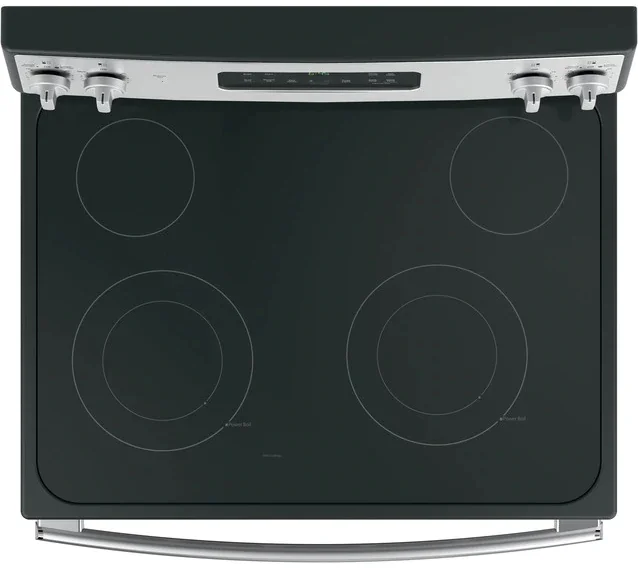

Cooking elements are covered with impact-resistant, smooth and seamless easy-to-clean ceramic glass. The element is directed upward toward the pan so it heats up very quickly. For best results, use cookware with a flat bottom that closely matches the size of pan to the size of the element.
