Broan ADA BBN1 Series 30" Stainless Steel Built-In Power Pack Insert - BBN1303SS
Ask Bolt?
Shop Broan
Abt Model: BBN1303SS
UPC: 026715267644
Ship to
Your Price:
$339
Special financing as low as $57/mo
$57/mo
suggested payments with 6 month special financing.
Get a decision in seconds with no impact to your credit bureau score.
or
Free Shipping
to
Ask Bolt?
Quick Specs
Key Features
What We Offer
- Height (in): 2.81
- Width (in): 29.88
- Depth (in): 11.44
- CFM: 300
- Duct Size (Vertical): 7" Round
- Fan Speeds: 2
- 30-Inch Hood Insert
- 300 CFM
- 2 Fan Speeds
- Heat Resistant LED Modules
- EZ1 Clips For Single-Person Installation
- ADA Adapter Kit Sold Separately
- Free Shipping on 1000s of Items
- Guaranteed Satisfaction
- Life Long Customer Service

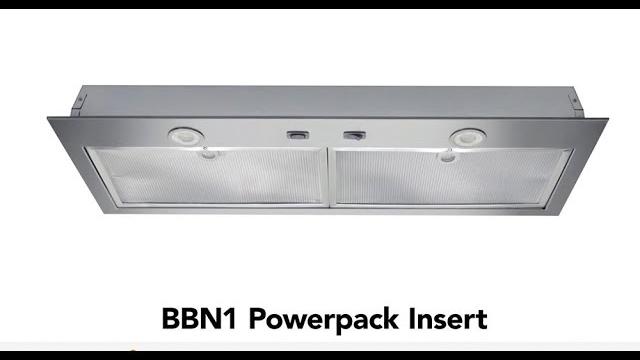

Broan BBN1303SS ADA BBN1 Series 30" Stainless Steel Built-In Power Pack Insert
The BBN1 powerpack insert series is ideal for cabinet installations. The integrated one-piece design protects the full bottom of your cabinetry with a flush appearance and depth adjustability. Featuring a smooth, stainless steel surface that is easy to clean with quick-release dishwasher-safe filters. The bright LED lighting enhances your cooking experience.
Features
- 300 MAX Blower CFM, 3.0 sones at normal speed.
- Two-speed rocker controls.
- Bright 1-level LED lighting modules illuminate evenly and are tested in cooking environments to ensure long life without dimming.
- EZ1 clips make it easy for single-person installation.
- 7" round duct adapter.
- Easy-to-clean, fully enclosed bottom with dishwasher-safe, aluminum-mesh filter.
- Optional non-duct operation using HARKBN24 or HARKBN30 non-duct kit and charcoal filter, sold separately.
- Works with optional Universal Make-up Air Dampers.
- ADA compliant, remote operation is possible using a standard UL approved wall switch. Requires ADA adapter kit, HAWSK3 (sold separately).
- Stainless liner extension accommodates up to 13" deep cabinets. Extensions available to accommodate cabinets up to 15" deep.
California customers:
General
Color
Stainless Steel
CFM
300
Style
Under-Cabinet
Mount Type
Under-Cabinet
Blower Included
Yes
Blower Type
Internal
Venting Type
Convertible
Dishwasher Safe Filters
No
Filter Type
Aluminum
Outdoor Capable
No
Type
Hood Insert
Control Type
Rocker Switch
Fan Speeds
2
Light Levels
1
Halogen Lighting
No
LED Lighting
Yes
Maximum Sones
7
Minimum Sones
3
ADA Compliant
Yes
Commercial Use
No
Electrical Specifications
Voltage
120 V
Wi-Fi
Wi-Fi
No
Approximate Dimensions
Height (in)
2.81
Width (in)
29.88
Depth (in)
11.44
Duct Size (Vertical)
7" Round
Hood Size (in)
30
Package Size HxWxL (in)
16 x 8 x 32
Warranty Information
Labor Warranty
1 Year
Parts Warranty
1 Year
Approximate Weight
Package Weight (lbs)
12
ADA Wiring Guide
Frequently Asked Questions
-
This hood insert features a convertible venting type with a 7-inch round duct adapter, allowing for both ducted and non-ducted operation with optional kits. It offers a maximum blower capacity of 300 CFM, suitable for effective kitchen ventilation.
-
The design includes EZ1 clips that enable single-person installation, making setup straightforward. It is intended for under-cabinet mounting and fits cabinets up to 13 inches deep, with extensions available for deeper cabinets.
-
It is equipped with bright, heat-resistant LED modules providing even illumination at one light level. These LEDs are tested for long life without dimming, enhancing visibility during cooking.
-
The unit includes fully enclosed bottoms and dishwasher-safe aluminum mesh filters that simplify cleaning and maintenance, ensuring a hygienic kitchen environment.
-
Yes, this hood insert is ADA compliant and supports remote operation through a standard UL approved wall switch when used with the separate ADA adapter kit, enhancing usability for individuals with disabilities.
