Metra Mount Kit for RAM 2019-Up (with Factory 8.4-inch Screen and Auto Climate) - 107-CH6B

Metra 107-CH6B Mount Kit for RAM 2019-Up (with Factory 8.4-inch Screen and Auto Climate)

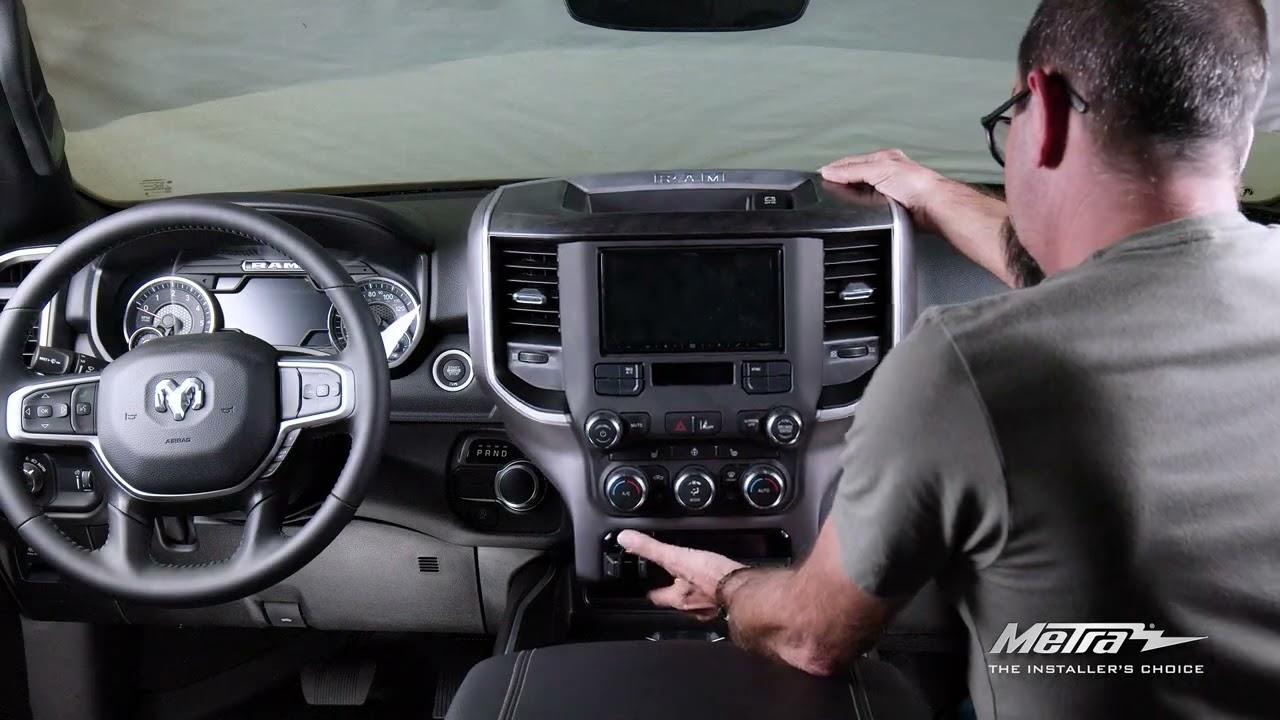

The 107-CH6B is designed to fit 2019-UP* RAM trucks. This dash kit is designed to install shallow-mount, modular, or L-shaped radios with the chassis at the bottom of the screen. A full-size Double-DIN installation will require extensive sub-dash modifications. The 107-CH6B is painted scratch-resistant matte black to complement the factory dash. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer, but this dash kit is required to make it fit.

Features

• Stereo installation kit designed to fit aftermarket shallow-mount, modular, or “L” shaped radios with the chassis at the bottom of the screen
• Painted scratch-resistant matte black to match the factory finish
• Steering wheel audio controls and factory climate controls are retained
• Factory-style hard buttons with laser-etched graphics are included to retain and control functions that are usually lost when removing the factory radio
• Axxess® interface is built into the included built-in OLED screen
• Built-in OLED screen displays the visual status of climate functions
• Sub-dash modifications are required for the installation of a Double-DIN radio, and once the changes are made, the vehicle will no longer be able to be restored to the factory setup
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes antenna adapter and hardware parts needed with detailed installation instructions
  • Applications:
    • 1500 2019-UP* (with factory 8.4” screen & auto climate)
    • 2500 2019-UP* (with factory 8.4” screen & auto climate)
    • 3500 2019-UP* (with factory 8.4” screen & auto climate)
    • Excludes the Classic model.

Axxess Interface:

• Designed for amplified or non-amplified models
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides illumination, parking brake, reverse, and speed sense outputs
• Retains audio controls on the steering wheel
• Allows retention and adjustment of the personalization options
• Retains safety chimes
• Retains the factory backup camera on 2500/3500 models
• Retains the factory AUX-IN jack (base models only)
• Retains balance and fade*
• Micro-B USB updatable
• Non-amplified models only

Footnotes:

• *Excludes the Classic model. Refer to the Vehicle Fit Guide for up-to-date vehicle-specific applications
