Sonance Speaker Switch Selector Distribution Box - 91368
Ask Bolt?

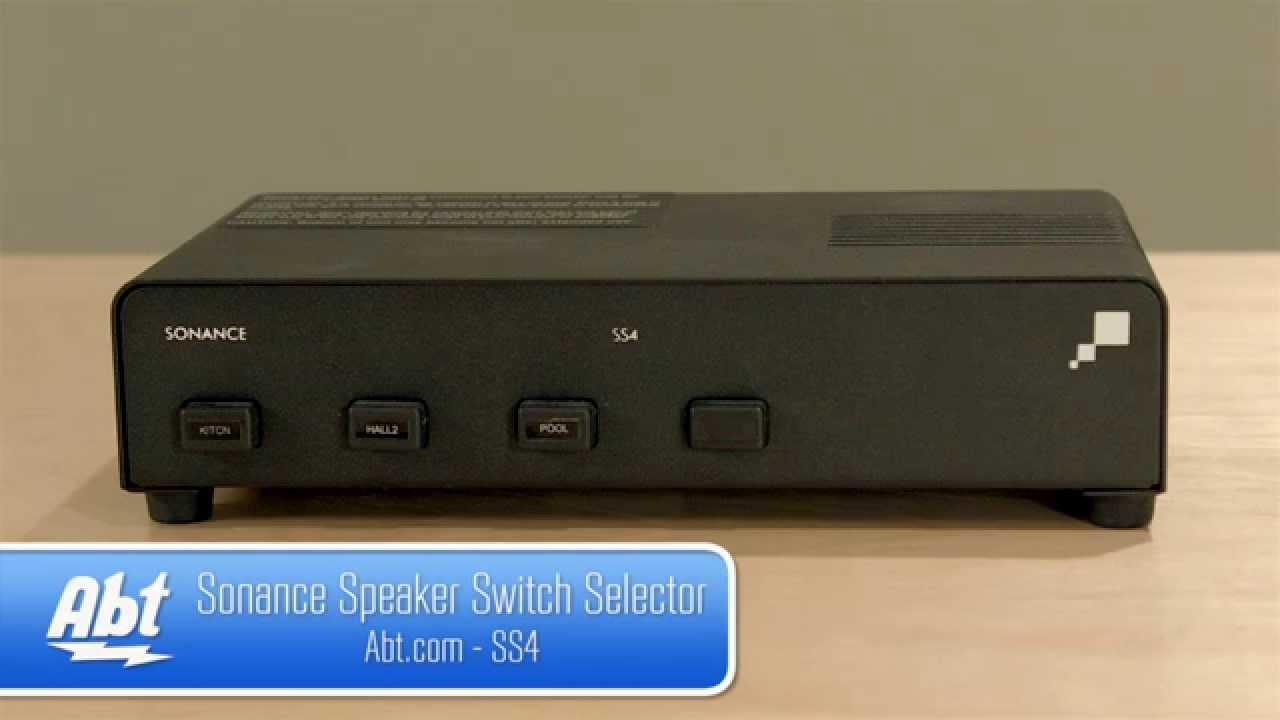

Sonance 91368 Speaker Selector Box
Features
- Small profile speaker selector.
- Independent on/off switches.
- Manual protection slide switch on bottom of switcher.
- Custom button labels can be attached to identify each zone.
- Stereo speaker push-type connectors on rear accept up to 12 gauge wire.
- Boating and RV compatible.
- Power Handling:
- 40 watt/channel with protection engaged
- 120 watt/channel without protection engaged
- Ground Paths:
- Separate left and right ground paths for compatibility with all amps, even bridged
California customers:
General
Color
Black
Number of Outputs
4 stereo speaker push-type connectors on rear accept up to 12 gauge wire
Number Of Inputs
1 stereo source input (speaker level)
Frequency Response
20Hz - 20kHz ±1dB
Warranty Information
Parts Warranty
5 Years
Labor Warranty
5 Years
Approximate Weight
Unit Weight (lbs.)
3
Package Weight (lbs)
2
Approximate Dimensions
Height (in)
2
Width (in)
8.5
Depth (in)
7
Package Size HxWxL (in)
4 x 8 x 10
Guides
Instruction Manual
Frequently Asked Questions
-
There are 4 stereo speaker outputs with push-type connectors on the rear that accept up to 12 gauge wire, allowing you to connect up to four pairs of speakers independently.
-
The unit handles up to 120 watts per channel without the protection engaged. When protection is engaged, it handles 40 to 50 watts per channel, providing flexibility depending on your setup.
-
Yes, the unit features independent on/off switches for each of the four pairs of speakers, allowing you to manage zones individually as needed.
-
The speaker push-type connectors on the rear accept wire up to 12 gauge, ensuring compatibility with a wide range of speaker wire sizes.
-
Yes, the compact design and features make it suitable for various applications including boating and RV environments, thanks to its robust construction and versatile connectivity.
Key Features
- Handles Up To 4 Sets Of Speakers
- Power Handling Capacity: Without Protection Engaged - 120 Watts Per Channel
- With Protection Engaged - 50 Watts Per Channel
- Small profile Speaker Selector
- Independent On-Off Switches For Four Pair Of Speakers
- Black Finish
