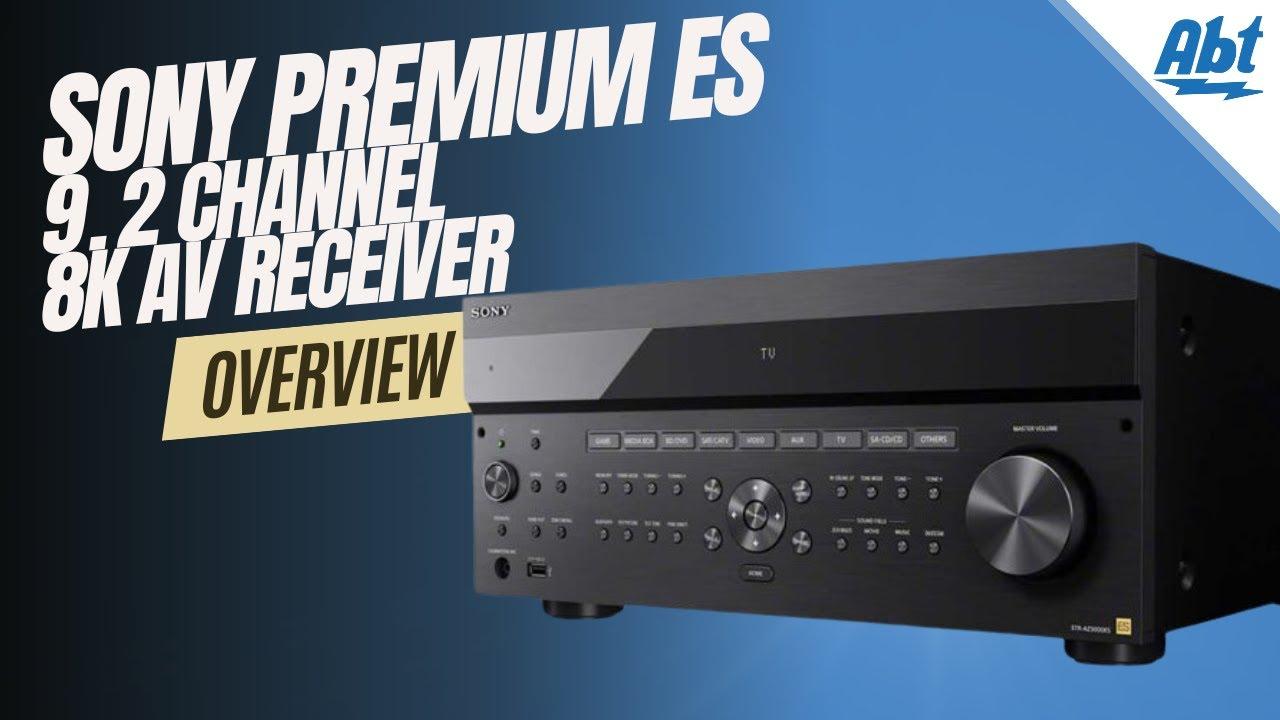

Sony Premium ES 9.2 Channel 8K AV Receiver - STRAZ3000ES

Boost Audio with the Sony STR-AZ3000ES AV Receiver

Upgrade your home audio system when you add the Sony STR-AZ3000ES AV receiver to the setup. This sleek, black device fits seamlessly into any room while it refines the way you listen to your favorite audio tracks. The chassis of this model has been redesigned to enhance performance while the sounds of iconic artists and bands fill the room. The increased thickness means elevated rigidity, while other weight-bearing components have been refined to assist with crisp audio production. Plus, the offset screw position and additional ribs on the foot have improved resonance control and rigidity. Depending on your audio preferences, use the Sony Music Center app to adjust various settings, such as source selection and sound field control. This way, every listening session will match the desired energy as the Sony STR-AZ3000ES AV receiver delivers exceptional audio.

Immersive Listening in Any Room

The Sony STR-AZ3000ES AV receiver adapts playback to surround the space with immersive audio, thanks to 360 Spatial Sound Mapping technology. Regardless of the room layout, this technology adjusts the physical sound field to recreate the feeling of sitting in a concert hall or movie theater. To further enhance audio quality, the Sony STR-AZ3000ES AV receiver uses Digital Cinema Auto Calibration IX technology. This innovative technology elevates your current sound system by correcting sound pressure, distance, frequency and more. The result? An unparalleled experience as each component of your home system works together to produce immersive playback.

Grow and Connect Your Entire Sound System

No matter what style of music you choose to play, the Sony STR-AZ3000ES AV receiver offers various connectivity options. From Bluetooth to Chromecast built-in to Apple AirPlay®, streaming your go-to artists and bands truly couldn’t be easier. Meanwhile, the 12-volt triggers provide plenty of outputs for your amplifiers, external peripherals and more. If you have Google Assistant, connect directly to this audio device before using voice commands to control how you listen. For more information about the Sony STR-AZ3000ES AV receiver, contact our experts at 800-860-3577. To continue researching on your own, refer to our guide to AV receivers.

Key Features

• Supports Dolby Atmos® & DTS:X ® object-based sound decoding
• Truly Immersive audio with Digital Cinema Auto Calibration IX and 360 Spatial Sound Mapping¹³
• Support for the most common HDR formats Dolby Vision, HDR10, Hybrid Log Gamma, IMAX Enhanced⁹
• “Works with SONOS” makes it possible to integrate the STR-AZ3000ES with your new or already existing SONOS system^5,6
• Stream your way with Bluetooth®, Wi-Fi, Chromecast built-in, Spotify Connect, and Apple AirPlay®^6,7,11
• Connects to your home’s other devices with Google Assistant⁸
• Optimized especially for custom in-home integration, and system configuration - Seamless IP Control integration with the leading control systems⁹
• Flexible setup options with built-in graphical user interface or front panel display
• Zone 2 & Zone 3 for Flexible, full-resolution multi-zone distribution capability
• Premium componentry meets ES standards for audio performance
• Center channel enhancements include Center Speaker Lift Up, Acoustic Center Sync, and Dual Center Speaker¹²
• Control with Sony Music Center app⁶
• Compatible with Sony’s SA-RS3S & SA-RS5 wireless rear speakers and SA-SW3 & SA-SW5 wireless subwoofers
• One 12-volt triggers for external peripherals, amplifiers, and more
• Three, IR repeaters (1-in, 2-out) for external device control
• Covered by our Sony ® ES 5-Year Limited Warranty¹⁰

Features

• 8K & 4K/120 HDMI Connectivity
  Enjoy the latest HDMI technology with support for 8K & 4K/120 video sources.^1,4 Equipped with four 8K HDMI inputs and two outputs the STR-AZ3000ES is capable of delivering the most stunning picture quality and amazing clarity.³
• Support for the most advanced object-based audio formats
  With support for Dolby Atmos®, Dolby Speaker Virtualization, DTS:X ®, and DTS Virtual: X the STR-AZ3000ES delivers a truly elevated object-based surround-sound experience.
• 360 Spatial Sound Mapping
  Experience true immersion. Sony’s exclusive 360 Spatial Sound Mapping technology reproduces a physical sound field that can adapt to your environment and create an experience that feels like a movie theatre or concert hall.¹³
• Digital Cinema Auto Calibration IX
  A new technology developed by Sony, Digital Cinema Auto Calibration IX precisely corrects the distance, angle, sound pressure, and frequency response of each speaker that’s connected to the STR-AZ3000ES to create the ideal sound field for any home theater setup.
• Supports Dolby Vision, HDR10, and Hybrid Log Gamma, and IMAX Enhanced
  Enjoy dynamic, realistic picture quality with support for exciting HDR formats like Dolby Vision, HDR10, Hybrid Log Gamma, and IMAX Enhanced.^6,8,9
• “Works with SONOS”
  From the SONOS app you will be able to turn on your A/V Receiver, switch to the designated input source for playback, and control the volume of your A/V Receiver.^5,6
• Easy Listening
  Listen to all your favorite tracks. The STR-AZ3000ES supports audio streaming via Bluetooth ®,¹¹ Wi-Fi, Chromecast built-in, ⁷ Spotify Connect, and Apple AirPlay®.⁶
• Voice Assistant Compatibility
  Connect to your home’s other devices, and use voice control to operate your receiver with Google Assistant.⁸
• Roon Tested
  Enjoy seamless integration with your Roon system for full access to all your music—including your digital files and streaming services—all in one place.⁶
• Compatible with Sony Music Center app
  Control the STR-AZ3000ES from your mobile device for operations like source selection, zone control, sound field control, volume control, media playback, and voice assistant setup.⁶
• Center Speaker Lift Up and Acoustic Center Sync
  Enhance your sound multiple ways: Center Speaker Lift Up raises the sound from the center speaker to match what’s on the TV, Acoustic Center Sync matches the audio to your compatible BRAVIA TV.¹²
• Support for integration with leading home control systems
  With support for the leading control and remote monitoring systems like Control4, Savant, Crestron, and OvrC the STR-AZ3000ES is built for integration.⁶
• Flexible setup options
  Installing the STR-AZ3000ES is easy. Setup can be performed either via the front panel or through the onscreen Graphical User Interface (GUI).
• USB Front Input with settings save option
  Using the front mounted USB, you can easily apply system updates and during setup, save all receiver settings to a flash drive for backing up and porting over to another unit to replicate settings.
• One 12-volt triggers
  Equipped with one 12-volt triggers for external peripherals, amplifiers, and more.
• Three IR Repeaters
  Three, IR repeaters (1-in, 2-out) for external device control.
• Ping Button
  Ping button for easy IP recall on front panel of receiver.
• RS232C Port
  RS232C port for control system configuration.
• Zone 2 & Zone 3
  Flexible multi-zone distribution capability.
• Go Wireless
  Sony’s SA-RS3S & SA-RS5 wireless rear speakers and SA-SW3 & SA-SW5 wireless subwoofers (Sold sep.) are compatible with the STR-AZ3000ES. Two subwoofers of the same model may be connected simultaneously to the receiver.
• DSEE Ultimate
  Using AI-based technology, DSEE Ultimate accurately upscales audio to near-high-resolution sound quality.
• HDMI 2.1
  While enabling higher quality video output and reduced latency from input devices like game consoles, HDMI 2.1 also provides support for Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR).^3,4
• 6 HDMI Inputs/2 Outputs
  The STR-AZ3000ES has six HDMI inputs with four inputs supporting full 8K & 4K/120 video sources, and two HDMI outputs that also support full 8K & 4K/120 video sources.^1,3,4
• Newly Designed Frame Beam Base Chassis
  The chassis of the ES model has been fundamentally revised: the overall thickness has been increased for improved rigidity, and the structures of the transformer base and other weightbearing parts have also been redesigned to improve the instantaneous power and crispness of the sound, when compared to a conventional chassis.
• Offset Screw Position Foot
  Designed with an offset screw position to both eliminate the resonance point and avoid frequency-specific, vibration-inducing resonance transmission to and from the transformer, the foot also contains additional ribs for increased rigidity and improved resonance control.
• Refreshed Digital Circuit Board
  Metal ES-grade frames both secure the circuit board and protect it from vibration caused by speaker sound pressure. The varying fin length of the integrated heat sink reduces audible resonance uniformity while also shielding delicate circuitry from noise.
• Redeveloped digital section
  The new digital section enables all signal processing to be performed on a single chip while also providing lower impedance, increased capacitance, and better stability.
• New DAC enables 32-bit operations
  Digital PCM signal input is processed at 32-bit and converted to analog by the DAC, while DSD signal input during direct mode is natively input to the DAC and converted to an analog signal.
• Improved analog power for DAC
  The DAC analog power supply uses a low-noise power supply IC to ensure that hi-fidelity performance is achieved.
• Buffer amp for DAC
  A new DAC analog output filter circuit was designed utilizing a JFET and op-amp improvement in noise floor. The phase rotation was shifted to a higher frequency, expanding the bandwidth and improving sound clarity for wide-bandwidth sources like high-resolution audio.
• Sony exclusive integrated circuit
  A Sony-exclusive integrated circuit was developed to improve all amplification function on the STR-AZ3000ES. The pre-amp is independently connected to each individual amplifier channel, improving channel separation and reducing internal interference over more traditional cascading designs.
• Lead free ES solder
  Applying years of sound engineering and testing experience, Sony has developed an ES-grade solder. A high-purity tin base combines with small amounts of specially chosen metal elements for a unique alloy mix that enables a quality signal and exceptional sound.
• Hi-Res Audio & 360 Reality Audio
  Enjoy music the way the artists truly intended with High-Resolution Audio for crystal clear precision or discover a new way of listening with 360 Reality Audio for a truly immersive live concert or studio session experience.⁶ With the STR-AZ3000ES, your music comes to life like never before.

Specifications

Interface

• HDMI supporting HDCP2.2 In/Out: HDMI Input supporting HDCP2.2(Front): 6(0) HDMI Output supporting HDCP2.2: 2
• Input and Output Terminals
  • Composite Monitor Out: 2
  • Opt: 2
  • Coax.: 1
  • Analog Audio In: 4
  • Pre Out (Subwoofer): 2
  • USB Front(ver) / Rear(ver): 1/0
  • Ethernet Port (Power over Ethernet): 1(0)
• Speaker Output Terminals: Front A, Center, Surround

Network Connectivity

• Network Features: Bluetooth Receiver, Bluetooth Transmitter, Wi-Fi
• Spotify Connect: Yes

Amplifier

• Number of Amp. Channels: 9 CH
• Speaker Impedance: 4ohms-16ohms
• Sound Field: 2ch Stereo, Direct, Auto Format Decoding, Multi Stereo, Audio Enhancer

Audio

• Sound Enhancement Technologies: Pure Direct, DSD Native Playback, Center Speaker Lift Up, In-Ceiling Speaker Mode

Video

• A/V SYNC: Yes(Variable)
• 4K Output: HDMI Video Output Capability: 8K, 4K, 1080p, 1080/24p, Deep Color (up to 36 bit), Triluminous Color (xvYCC)
• 4K 60p 4:4:4 Support: Yes
• 3D over HDMI: Yes
• HDR (High Dynamic Range): Yes(HDR10, Hybrid Log Gamma, Dolby Vision)
• Audio Return Channel: Yes
• BRAVIA® SYNC™ (CEC Control): Yes (System Audio Control, System Power Off, RC Pass Through, Language Follow, One-Touch Play)
• HDMI Pass Through: Yes

Auto Speaker Calibration

• Calibration Features: D.C.A.C. IX / D.C.A.C. EX / Advanced D.C.A.C. / D.C.A.C.: D.C.A.C. IX, Speaker Relocation: Yes, Phantom Surround Back: Yes, Automatic Phase Matching: Yes, Calibration Mic: Stereo

Tuner

• FM/AM: Yes/-
• Preset Channel (Sirius/XM/FM/AM): TTL30 (30/0)

Decoding Format for HDMI

• Decoding Format for HDMI: DSD: Yes (Up to 2.8MHz 5.1ch), LPCM: Yes (Up to 192kHz/24 bit 7.1ch), DTS HD MA / DTS HD HR: Yes/Yes, Dolby TrueHD/Dolby Digital Plus: Yes/Yes, DTS / DTS-ES (Matrix6.1 / Discrete6.1): Yes/Yes, DTS 96/24: Yes, DTS:X: Yes, Dolby Dual Mono: Yes, Dolby Atmos: Yes

Decoding Format for USB/Network Client

• Hi-Res Format: DSDIFF(DSD), DSF, WAV(LPCM), AIFF(LPCM), FLAC, ALAC

Custom Install & Control

• Zone2 Audio: 2nd A: Speaker(Variable) / Line (Variable, Fixed) / HDMI(Fixed)
• IR Repeat (In/Out): Yes(1/2)

General

• GUI (Graphical User Interface): Yes
• Power Requirement: 120V 60Hz
• Power Consumption: 440W
• Auto Standby: Yes
• Attachment: Calibration microphone, Calibration mic stand, FM wire antenna, AC power cord, Remote control, R03 (size-AAA) batteries, Front cover

Footnotes:

• ¹ 8K: 7,680 x 4,320 pixels. Requires HDR compatible content from supported streaming services or HDR compatible content device connected via HDMI input (sold sep).
• ³ Requires HDMI ® cable sold sep.
• ⁴ 4K: 3,840 x 2,160 pixels. Game title supporting 4K/120fps and/or VRR required.
• ⁵ Sonos app required. Device must be connected to a power source, plugged into a SONOS ® port, have the same Wi-Fi or hardline connection.
• ⁶ 3rd party apps, network services, content, the operating system and software of this Product may be subject to individual terms and conditions and changed, interrupted or discontinued at any time and may require fees, registration and credit card information. Requires product to be connected to the wireless network. 360 Reality Audio requires subscription to compatible online music service and third party terms, conditions, account and fees may apply.
• ⁷ Chromecast built-in compatibility dependent on app.
• ⁸ User must connect to a Google account to use, including voice to activate linked apps.
• ⁹ May require additional accessories. Check with your authorized dealer for details.
• ¹⁰ For full terms and conditions please visithttps://www.sony.com/electronics/support
• ¹¹ Interoperability and compatibility among Bluetooth ® devices vary.
• ¹² BRAVIA Acoustic Center Sync mode works with the following models: Z9J series, A90J series, A80J series, X95J series. Product availability varies by country. Integrated UI works with the following models: Z9J series, A90J series, A80J series, X95J series, X90J series, X85J series, X80J series, A80K series, X90K series, Z9K series, A95K series, A90K series and X95K series.
• ¹³ To use 360 Spatial Sound Mapping, it is necessary to run the auto calibration on the receiver using the supplied calibration microphone that comes with the receiver. 360 Spatial Sound Mapping can work with passive speakers and compatible wireless rear speakers (SA-RS3S & SA-RS5) but they must be connected to the receiver for the calibration.
