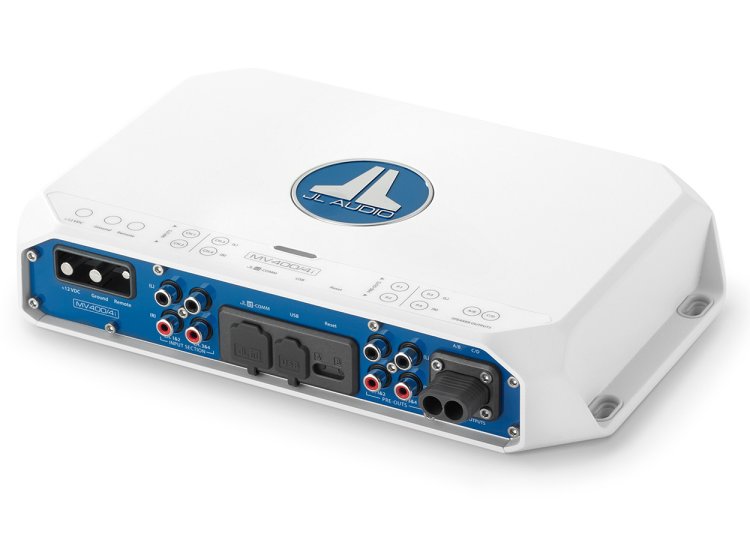

4-Channel Class D Full-Range Marine Amplifier with Integrated DSP, 100 W x 4 @ 2 Ω / 75 W x 4 @ 4 Ω - 14.4V

Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Outfitted with our second-generation NexD2™ technology, the MV400/4i produces up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, generating up to 200 W x 2.

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. Housed in a compact, cast alloy chassis with marine-grade powder coat finish, the MV400/4i is outfitted with corrosion-resistant hardware and connectors.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

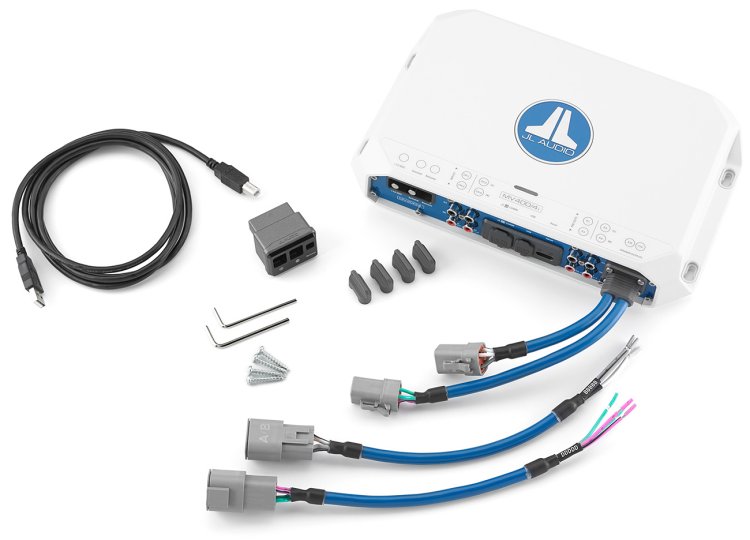

Amplifier includes: Power Connector (for 4 AWG wire), Speaker Output Harnesses (2), 6 ft A/B USB Cable

Features

• TüN™ Software Applications
  Intuitive setup and tuning, all at your fingertips. Automatically recognizes the connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices. PC or Mac®, via wired USB connection or iOS® and Android®, via Bluetooth® (with optional VXi-BTC).
• Unprecedented, Onboard DSP Tuning Power
  • Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM®
  • HD audio processing at 24 bit/48 kHz
  • High-performance AKM® A/D and D/A converters
  • 10 Bands of fully parametric EQ, per output channel, including pre-outs
  • Shelving EQ option for Band 1 and Band 10
  • High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes:

    • Linkwitz-Riley: 12, 24, 48 dB/octave

    • Butterworth: 6, 12, 18, 24, 36, 48 dB/octave
  • Signal Delay in 0.02 millisecond steps (equivalent to 1/4-inch, 6 mm)
  • All-Pass Filter (Phase EQ), with variable "Q" and corner frequency
  • Polarity Reversal (0 or 180 deg.)
  • Output Level Trim in 0.1 dB steps
• NexD2™ Switching Amplifier Technology
  • 2nd-Gen high-speed switching amplifier technology delivers reference-grade audio with outstanding efficiency.
  • DSP-synchronized power supply and output channels deliver world-class sound with very low noise and distortion
  • Latest generation of DirectFET® MOSFET output devices
• Versatile, Differential-Balanced Analog Inputs
  • High-performance, differential-balanced analog inputs for outstanding noise rejection
  • Accepts a wide range of input signal levels, including those from many factory systems (250 mV to 16V RMS)
  • Independently configurable RCA analog pre-outs (24 bit/48 kHz)
• Functional Compact Chassis Design
  • Cast alloy main unibody with powder coat finish deliver superb EMI shielding and durability
  • Keyhole mounting design simplifies installations in vertical/limited space applications
  • Corosion-resistant hardware and harness connectors
• JLid™ System Command with Networking Capabilities
  JL Audio's digital protocol provides control interface and communication for MVi amplifiers and optional JLid™ accessories, including:
  • VXi-BTC Bluetooth® Communicator: Adds wireless connectivity for a compatible iOS® or Android® device, permitting amplifier setup from these devices. (Functionality varies by model.)
  • M-DRC and DRC Controllers: Wired remotes offer preset selection and adjustments of levels, fader and balance from the helm or driver’s seat. (Connectivity/functionality varies by model.)
  • MVi-HUB JLid-COMM and Network Bridge Hub: Provides network connectivity for up to six MVi amplifiers (one master and five slave amplifiers) for full-system DRC control and Preset selection.

Specifications

• Rated Continuous (RMS) Power @ 14.4 V
  • @ 4 Ω: 75 W RMS x 4
  • @ 2 Ω: 100 W RMS x 4
  • Bridged @ 4Ω: 200 W RMS x 2
• Rated Continuous (RMS) Power @ 12.5 V
  • @ 4 Ω: 60 W RMS x 4
  • @ 2 Ω: 90 W RMS x 4
  • Bridged @ 4Ω: 180 W RMS x 2
• General
  • Frequency Response: 12 Hz - 24 kHz (+0, -1dB)
  • S/N Ratio, referred to highest rated power (Analog Inputs): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Analog Inputs): 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω: >100 / 50 Hz
  • Damping Factor @ 2 Ω: >50 / 50 Hz
  • THD+N @ Rated Power: <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: 250 mV - 16 V RMS
  • Min.Copper Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 40 A (AFS, AGU or MaxiFuse™)
  • IP Rating: IPX2 (when mounted vertically with connections pointed downward)

Approximate Dimensions

• Height: 2.05"
• Width: 11.2"
• Depth: 6.93"

Approximate Weight

• Unit: 5 lbs
• Shipping: 8 lbs

Warranty Information

• Manufacturer Warranty (authorized online retailer): 2 Years Parts and Labor
