MantelMount Motorized Drop Down & Swivel TV Mount - MM860V2
Ask Bolt?
Shop MantelMount
Abt Model: MM860V2
UPC: 860001148909
Ship to
Call for availability
Your Price:
$2,999
Special financing as low as $250/mo
$250/mo
suggested payments with 12 month special financing.
Get a decision in seconds with no impact to your credit bureau score.
or
Email
Notify me when this item is available
See other products in
Ask Bolt?

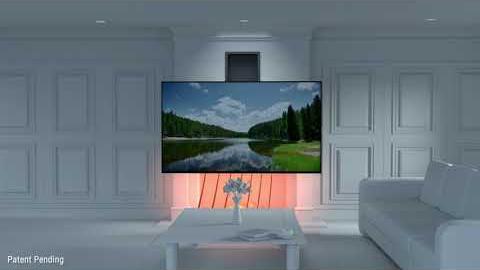

MantelMount MM860 Motorized Drop Down & Swivel TV Mount
*Must be installed by Abt locally only
The award-winning MantelMount presents a motorized mount for high on the wall installations such as over a fireplace. Offering comfortable eye-level viewing, the fully automated MM860 Pro Series TV Mount is second to none!
Key Features
- Fully Motorized For Up/Down Travel & Swivel
- Auto-Temperature Sensing & Retraction
- Integrate With Control Systems Or Control With Included RF Remote
- Limited Lifetime Warranty & 100% Guarantee
Features
- Simultaneous Drop & Swivel
Patented Multi-Axis hub, proprietary software and precision electronic actuators lower and swivel the TV in one quick fluid motion. - Remote Control Choices
Controlled through the included 433 MHZ RF remote, IR-based Logitech Harmony remotes and popular home automation systems. - Home Automation Options
Works with Control4, URC, RTI, Crestron, Savant and Logitech, with command sets for hard-coding additional systems. - Power Sensing Technology
Detects when the TV is turned on and automatically lowers it to a favorite preset. Provides automation even without a control system. - Silent Operation
Two custom electronic actuators allow for smooth, barely audible movement. - Recessible Housing
Conceals the lifting arm and electronics in the raised position. Can be recessed for flush-to-wall installations. - Temperature-sensing Monitor
TV automatically retracts to its home position when an unsafe temperature is detected. - Multiple Memory Presets
Easily program multiple preset positions for favorite viewing locations. - Power Loss Recovery
Keeps its last location in memory, eliminating the need for a reset after power interruption. - Soft & Hard Travel Stops
Vertical and horizontal travel limits configured through both software and hardware, provide a virtual safety shield that prevents the TV from touching the wall or mantel. - Plug & Play Networking
DHCP enabled right out of the box. Easily identifiable on the network. - On-board Web Server
For simple browser based configuration. - Online Software Updates
Download the latest software and firmware updates from the internet directly to the control module. - Communication Protocols
Can be managed with IP and RS232 protocol through Ethernet, dry contacts or a serial IRDA port. - Post-installation Leveling
Allows for screen position refinement after the mount is installed. - Horizontal Braces With Paintable Covers
Make retrofitted installations fast and easy, for both recessed or surface installations. - Easy To Service
The mount installs in one piece. Electronics are contained in a single lightweight module that’s easily shipped, removed and replaced.
California customers:
General
Type
Pulldown
Maximum TV Size Compatibility (in)
100
Minimum TV Size Compatibility (in)
55
Assembly Required
Yes
Outdoor
No
In the Box
Horizontal Sound Bar Adapter, Color-changing Heat-Sensitve Handles
Maximum TV Weight (lbs.)
125
Mount Material
Heavy Duty Steel
Max Mounting Pattern
600x600
Product Finish
Black
Swivel Adjustment (Degrees)
25 degrees left/right
Warranty Information
Labor Warranty
Limited lifetime, 5 Years Gas Springs or Electronic Parts
Parts Warranty
Limited lifetime, 5 Years Gas Springs or Electronic Parts
Approximate Weight
Unit Weight (lbs.)
73
Package Weight (lbs)
130
Approximate Dimensions
Height (in)
31.5
Width (in)
35.4
Depth (in)
8.25
Package Size HxWxL (in)
7 x 17 x 39
Guides
Dimensions Guide
Articles
Frequently Asked Questions
-
This mount supports TVs ranging from 55 inches up to 100 inches in size, with a maximum weight capacity of 125 pounds, accommodating most large flat-screen televisions securely.
-
The mount utilizes a patented multi-axis hub and precision electronic actuators to simultaneously lower and swivel the TV in a smooth, fluid motion. This allows for comfortable eye-level viewing by adjusting the TV position seamlessly.
-
Controls include an included 433 MHz RF remote, compatibility with IR-based Logitech Harmony remotes, and integration with popular home automation systems such as Control4, URC, RTI, Crestron, Savant, and Logitech, enabling versatile and convenient operation.
-
The system includes vertical and horizontal travel limits configured both in software and hardware to prevent the TV from hitting the wall or mantel. Additionally, a temperature-sensing monitor retracts the TV if unsafe temperatures are detected, ensuring safety and longevity.
-
Installation requires assembly but the mount is designed for easy one-piece installation. Electronics are contained within a single lightweight module that can be easily shipped, removed, and replaced, making servicing straightforward.
Key Features
- Simultaneous Drop & Swivel
- Silent Operation
- Recessible Housing
- Temperature-sensing Monitor
- Multiple Memory Presets
- Power Loss Recovery
- Plug & Play Networking
- On-board Web Server
- Online Software Updates
- Horizontal Braces With Paintable Covers
- Black Finish
In the Box
- Horizontal Sound Bar Adapter
- Color-changing Heat-Sensitve Handles
