Rockford Fosgate Compact 2.7" Digital Media Receiver - PMX-3

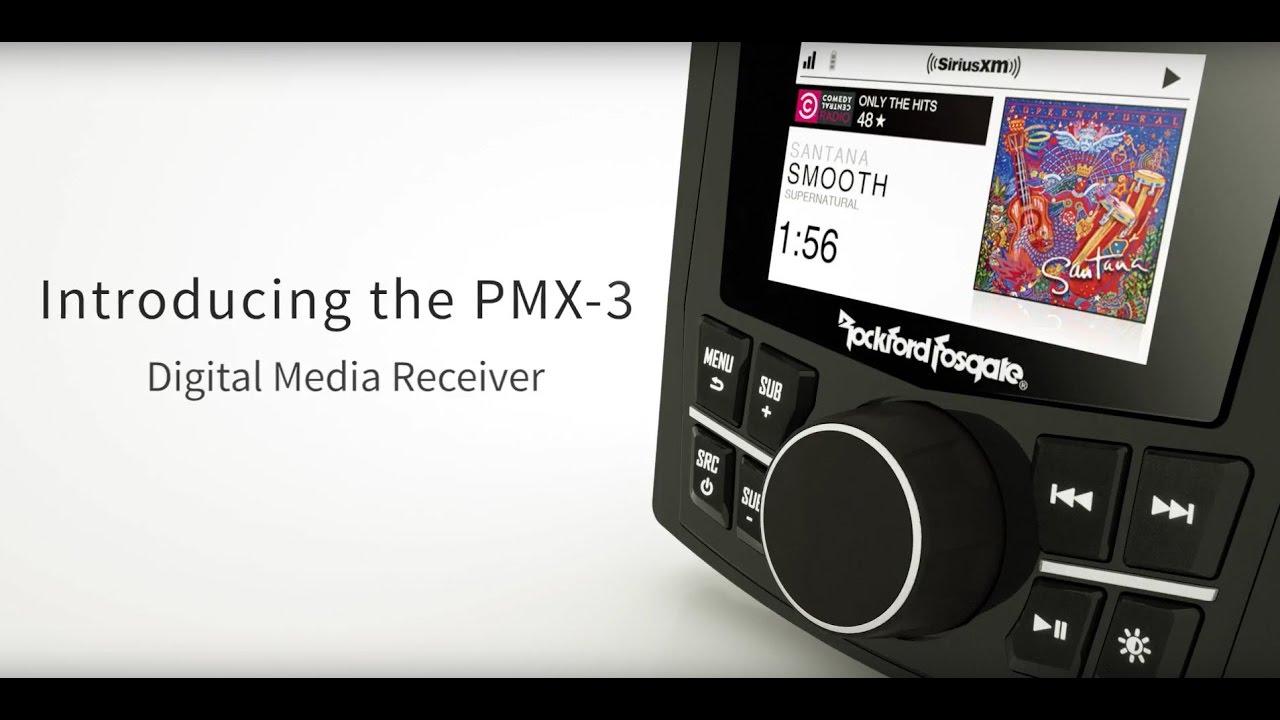

The PMX-3 is a ground up designed digital media receiver for marine and motorsports applications with full color 2.7" TFT display. This unit not only has the functionality you desire such as a custom designed GUI interface and menu system built with "ease of use" in mind, but also features SiriusXM tuner compatibility, Pandora radio control via USB or Bluetooth and full iPhone support with folder browsing capability.
The PMX-3 compact digital media receiver, designed for marine and motorsports applications, features a 2.7"full color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration.
The PMX-3 is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such SiriusXM tuner compatibility, Pandora control capabilities and Bluetooth audio steaming with album art support for Apple and Android products, this unit becomes a true command center of any system. Output flexibility comes with a 4x50 @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of aftermarket amplifiers for more power and output.
We've also upgraded the unit to feature a reverse camera composite video input with reverse trigger control and a day/ night display mode for better viewing in low light conditions. Finally, add in the EEprom memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need.
Features:
- 2.7" Full color Thin Film Transistor display
- SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)
- Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
- Integrated voltage gauge w/ low voltage alert
- Wired remote ready (up to 3 remotes)
- Two-piece mounting system to secure panel to mounting surface
- Front Panel Sub Control
- Upgradeable Firmware and Bluetooth Software via USB
- IPX6 Water Intrusion Rating: Water projected in powerful jets from any direction shall have no harmful effects
- ASTM: B117 Salt Fog & D4329 UV Exposure Tested
- Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt
- Internal power amplifier 4x45W 2Ω stable
- Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive broadcast information
- Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)
- Made for iPhone apple certified
- Bluetooth streaming audio (A2DP) protocol version 1.4 installed
- Rear USB With 1A Charging Only
- Rear AUX-In (L/R)
- Simple Secure Pairing (SSP)
- Display album art from connected iPhones on the radio display
- Folder browsing via BT connected iPhones
- Dedicated DSP audio processors for each zone with independent 7 Band EQ + Punch EQ
- Selectable high pass and low pass crossover points for each zone
- Selectable crossover slopes of 12dB or 24 dB for each zone
- Adjustable input gain for each source
- Waterproof Rotary Encoder Volume Control
- Tactile convex buttons for easy identification
- White LED Button Illumination
- Wired and front panel illumination control
- Wet Bonded Display
- Epoxy coated circuit board for water resistance
- External trigger input to activate reverse camera mode
- Direct composite video input connection
- Day/Night display mode
Specifications:
- FM Tuner:
- Frequency Range: 87.5 MHz - 107.9 MHz
- Sensitivity: 8 dB
- AM Tuner:
- Frequency Range: 530 kHz - 1710 kHz
- Usable Sensitivity: 40 dB
- RCA Output:
- Voltage: 4 V
- Impedance: 500Ω
- Speaker Impedance: 2-Ohms
- Power Output:
- CEA-2006 Power Rating:
- 25W x 4 @ 4Ω RMS
- 50W x 4 @ 2Ω Peak
- ≤1.0% THD+N
- CEA-2006 Power Rating:
- Fuse Rating: 20 A
- Media Player:
- Audio Format Compatibility: MP3, WMA
- Clock (Yes/No): Yes
- Compatible Remotes:
- PMX-1R
- PMX-0R
- (3 Remote Limit, 100 ft Total Wired Distance)
- Speaker Outputs (Yes/No): Yes
- Made for iPod Models:
- iPod Touch (5th generation)
- iPod Touch (4th generation)
- iPod Nano (7th generation)
- iPod Nano (6th generation)
- Android Compatibility: Bluetooth® Only
- Device Type: Digital-Media Receiver
- SiriusXM-Ready® (Yes/No): Yes
- WB Tuner:
- Frequency Range: 162.40 - 162.55 (US & Canada)
- Tuner:
- Number Of Presets: 18 FM / 12 AM / 6 WB
- USB Version: 2.0
- AUX Input (Yes/No): Yes
- Steering Wheel Control Ready (Yes/No): No
- Multi-Zone/Multi-Source (Yes/No): No
- Operating Voltage: 10.5 V - 16 V
- USB Capacity:
- 32Gb max
- 999 Folders max
- 999 Songs max
- Display Size: 2.7” Color TFT
- Pandora® Internet Radio (Yes/No): Yes
- Bluetooth® (Yes/No):
- Yes
- 3.0+EDR, A2DP 1.3
- USB Output Current: 1A
- USB Charging (Yes/No): Yes
- Frequency Response: 20 Hz - 20 kHz
- Made for iPhone Models:
- iPhone 7 Plus
- iPhone 7
- iPhone 6s Plus
- iPhone 6s
- iPhone 6 Plus
- iPhone 6
- iPhone 5S
- iPhone 5C
- iPhone 5
- iPhone 4S
- iPhone 4
- iPhone 3GS
- Apple®/Android™ Compatible (Yes/No): Yes
Approximate Dimensions:
- Height: 4.2"
- Width: 4.5"
- Face Depth: 1.5"
- Mount Depth: 2.9"
Approximate Weight:
- Shipping: 3 lbs
Warranty Information:
- Manufacturer Warranty (authorized online retailer): 2 Years Parts and Labor
- 2.7" Full Color Thin Film Transistor Display
- SiriusXM-Ready
- Electrically Erasable Programmable Read-Only Memory
- Integrated Voltage Gauge With Low Voltage Alert
- Wired Remote Ready
- Front Panel Sub Control
- Internal Power Amplifier 4x45W 2 Ohm Stable
- Bluetooth Streaming Audio (A2DP) Protocol Version 1.4 Installed
- Simple Secure Pairing
- Dedicated DSP Audio Processors For Each Zone With Independent 7 Band EQ + Punch EQ
- Selectable Crossover Slopes Of 12dB Or 24 dB For Each Zone
- Waterproof Rotary Encoder Volume Control
- Wet Bonded Display
- Black Finish
