SVS Black Ash Prime Elevation Speakers (Pair) - PRIMEELEVATIONBK

SVS Black Ash Prime Elevation Speakers - PRIMEELEVATIONBK

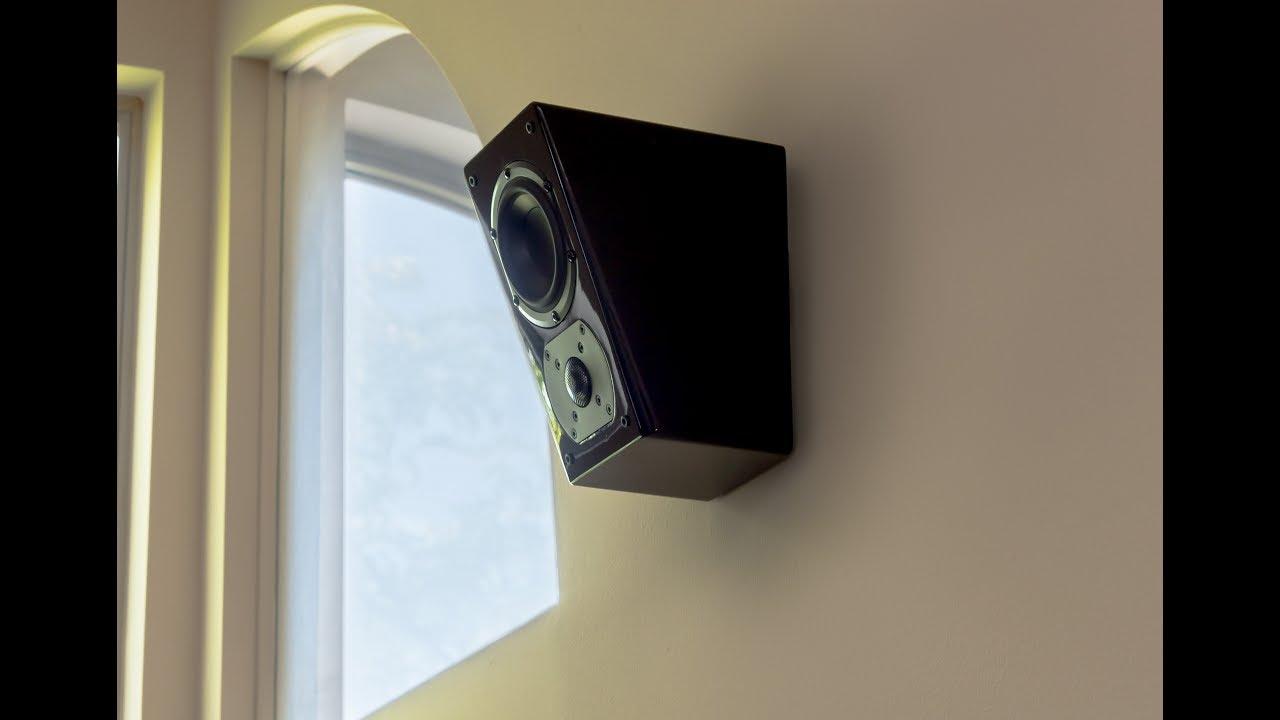

SVS Prime Elevation speakers play any role in a home theater surround sound system amazingly well. Designed to easily mount directly to the wall or ceiling with the Multi-Purpose Wall Bracket (patent pending), the SVS Prime Elevation can be used as a direct-radiating height effects speaker for immersive object-based audio formats such as Dolby Atmos®, DTS:X® and Auro-3D®. With its angled front baffle, Prime Elevation can also be used as left or right fronts, a center channel, side surrounds and rear surrounds to provide crisp, dynamically charged sound in rooms of all shapes with all different architectural features.

Specifications:

Frequency Response / Acoustic Data

• Rated bandwidth: 55 Hz-25 kHz (±3 dB)
• Nominal impedance: 8 ohms
• Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
• Recommended amplifier power: 20-150 watts

Speaker

• 5-way binding posts
• 1" wide-flared rear-firing port
• Cloth grille with pin/cup retention system
• Magnetic SVS Logo which can be removed and oriented according to speaker application
• Elastomer stick-on bumper feet (adds 3mm to height)
• Unique SVS Multi-Angle Wall Bracket (patent pending) system that allows speaker to be wall mounted in any of four positions
• 1/4" brass insert for use with included SVS Multi-Angle Wall Bracket and other bracket mounting systems.

Driver

• 1" Aluminum Dome Tweeter
  • FEA-optimized diffuser for airy and unveiled presentation
  • Aluminum dome for exceptional transient response
• 4.5" Woofers
  • Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
  • Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
  • Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
  • Vented voice coil former minimizes air compression artifacts

Crossover & Cabinet

• Crossover
  • 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
  • Crossover network delivers outstanding phase coherency and time domain behavior
  • Tweeter-to-woofer crossover: 2.5 kHz (12 dB/octave slopes)
• Cabinet
  • Acoustically transparent and FEA optimized grilles minimize diffraction
  • Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved off-axis high frequency response
  • Angled baffle and optimized crossover combine for perfect acoustic performance at any position

Approximate Dimensions:

• Cabinet (H x W x D): 9.25" x 5.44" x 7.88"
• Overall (H x W x D): 9.4" x 5.44" x 8.33" (Includes Grille and Bumper Feet)
• Overall (H x W x D): 9.25" x 5.44" x 8.98" (Includes Grille and SVS Multi-Angle Wall Bracket)

Approximate Weight:

• Unit: 7.8 lbs
• Shipping: 37 lbs

Warranty Information:

• Manufacturer Warranty (authorized online retailer): 5 Year Warranty
