Comparing the Bosch SHP65DM5N 500 vs. SHP78CM5N 800 Series Dishwashers
For generations, Bosch has been a trusted household name, designing everything from kitchen appliances to laundry room essentials. But the brand’s dishwashers are where they really shine. Of the available selection, the 500 and 800 Series are popular choices. Today, we’re comparing two top picks: the 500 Series SHP65DM5N and the 800 Series SHP78CM5N. Each holds up to 16 place settings, has five wash programs and is compatible with the Home Connect app. So…why the $250 price difference? Below, we dive into the main differences between these Bosch 500 vs. 800 Series dishwashers to help you choose the best model for your home.
Meet the Bosch Models
Hassle-Free Cleaning
Our Bosch 500 vs. 800 Series evaluation begins with wash performance; arguably one of the most important factors when shopping for an upgrade. With the 500 Series SHP65DM5N, you’ll be getting the brand’s Zone Wash. When using the Deep Clean cycle, a dedicated spray arm creates an intensive cleaning zone on the lower rack to break down lingering debris and food residue. This means you don’t have to pre-rinse or scrub before pressing start.
The 800 Series SHP78CM5N takes cleaning up a notch with the PowerControl™ spray arm. Combined with PrecisionWash®, no mess is too much to handle. The bottom rack is separated into four zones, giving you the option to target specific sections with the Home Connect app. For example, after lasagna night, have the motorized spray arm focus on the pan while delivering a normal clean to other used plates and cups. While both dishwashers power through stubborn food soils, the SHP78CM5N model is certainly worth the higher price tag for those who want more control over cleaning performance.
Dry Systems for Table-Ready Results
The dry cycle follows the final rinse, which leads us to our next comparison category: drying performance. This category marks the biggest difference between these Bosch 500 vs. 800 Series dishwashers. The 500 Series SHP65DM5N uses AutoAir®. Instead of generating heat, this system cracks open the door to let fresh air in and moisture out. The natural circulation delivers up to 40% drier dishes compared to other models. While any homeowner will benefit from AutoAir®, it’s especially great for overnight and eco-conscious users.
The SHP78CM5N from the 800 Series has Bosch’s most advanced drying technology to date: CrystalDry™. Just as the name implies, a unique mineral known as Zeolites transforms lingering moisture into heat, reaching up to 176°F. This scientific process leaves dishes up to 60% drier—even plastics. But the biggest advantage of this technology isn’t the results. The crystals last a lifetime, never needing to be replaced or recharged. For this category, consider whether you prefer an open-drying system or a closed one, and that will help you decide between these Bosch dishwashers.
Exploring their Operation
We’ve talked about wash and dry performance; now it’s time to dive into the available programs. Both models offer five base cycles. However, the 500 Series model has a Deep Clean cycle specifically designed for the Zone Wash system. With the 800 Series SHP78CM5N dishwasher, you’ll get a Heavy cycle that’s compatible with the PowerControl™ cleaning options.
Of course, the wash settings aren’t the only factor to consider for this category. Sound is equally important to consider in terms of operation. When comparing these Bosch 500 vs. 800 Series dishwashers, you can’t deny that both are exceptionally quiet, almost like a light rain or the hum of your refrigerator. The mid-tier SHP65DM5N runs at 44 decibels. If you want something quieter, opt for the 800 series SHP78CM5N, which operates at just 42 decibels.
Fitting into Your Kitchen

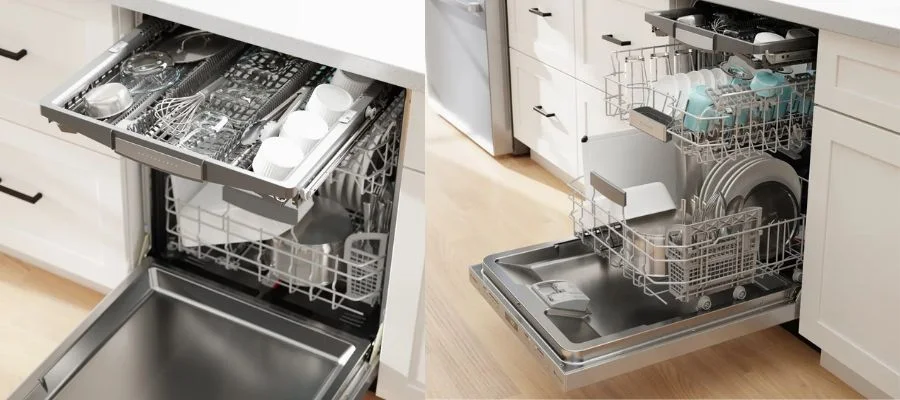

Our Bosch 500 vs. 800 Series dishwashers evaluation continues with design. Both the SHP65DM5N and SHP78CM5N are practical yet beautiful appliances, with their stainless steel wash tubs and anti-fingerprint finishes. Not to mention the stylish pocket handle and hidden touch controls. Where the differences lie is within. Both have three racks with the brand's RackMatic® adjustability. This lets you switch between three heights and nine total positions to accommodate larger pots or taller glassware. The third rack of the SHP65DM5N has the brand’s standard design, which is great for utensils and flatware.
Turning to the 800 Series SHP78CM5N, you get an upgrade with the Flexible 3rd Rack. Unlike the standard design, the expandable wings make it easy to fit bulky items. And the EasyGlide™ rack system maintains smooth movements, even when the racks are fully loaded. This makes the SHP78CM5N ideal for family households or those who love to host large gatherings.
Control At Your Fingertips
As mentioned above, both appliances are compatible with the Home Connect® app. This smart platform connects the models directly to your smartphone via WiFi, giving you remote access from nearly anywhere. But that’s not all you get. Connecting grants you extra wash programs/options. The 500 Series SHP65DM5N gains Hand Wash, Energy Save, Fixed Zone, Half Load, Machine Care and Rinse. Meanwhile, the upgraded SHP78CM5N offers Hand Wash, Energy Save, Half Load, Machine Care and Rinse. And remember, the Home Connect® is essential for controlling the PowerControl™ spray arm.
A Quick Recap
| Category | The 500 Series SHP65DM5N | The 800 Series SHP78CM5N |
|---|---|---|
| Capacity | 16 Place Settings | 16 Place Settings |
| Wash Technology | Zone Wash | PowerControl™ |
| Dry Technology | AutoAir® | CrystalDry™ |
| Base Wash Programs | Deep Clean, Auto, Normal, Speed 60, Favorite | Heavy, Auto, Normal, Speed 60, Favorite |
| Base Options | Sanitize, AutoAir | Sanitize, Crystal Dry, ZoneControl™ Front, ZoneControl™ Back, ZoneControl™ Custom |
| Home Connect Additions | Hand Wash, Energy Save, Fixed Zone, Half Load, Machine Care, Rinse | Hand Wash, Energy Save, Half Load, Machine Care, Rinse |
| Silence Level | 44 dBA | 42 dBA |
| Home Connect Compatible | Yes | Yes |
Choosing the Best Model for You
Our Bosch 500 vs. 800 Series dishwashers comparison has come to an end, and if we're being honest, both the SHP78CM5N and the SHP78CM5N are excellent choices. With either model, you'll be able to fit up to 16 place settings and have five wash programs to choose from. Not to mention remote access with the Home Connect app. The 500 series SHP78CM5N dishwasher is great for those wanting reliable washing and drying performance, along with near-silent operation. And you get the brand's standard third rack.
For those wanting something even more refined, you’ll want to go with the 800 Series SHP78CM5N model. Its wash and dry technologies are more advanced and better for households with a lot of reusable plastics. And it's even quieter, perfect for those who have small children or skittish pets. Still unsure which appliance is right for you? Give our team a call at 800-860-3577 to learn more about either model. If you’d prefer to continue your own research, check out our guide to dishwashers.
Bosch 500 vs. 800 Series Dishwashers FAQs
-
The Bosch SHP65DM5N dishwasher operates at just 44 decibels.
-
Yes, the Bosch SHP65DM5N dishwasher is ENERGY STAR certified.
-
We think so. These high-end appliances are designed to provide exceptional wash and dry performance, all while enhancing the space around them.
-
The SHP78CM5N dishwasher from Bosch’s 800 Series features CrystalDry™ technology, which turns lingering moisture into heat for 60% drier dishes.
